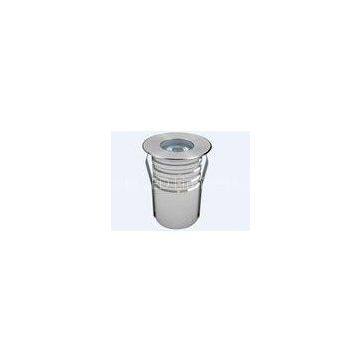

IP67 Constant Current 1Watt LED Inground Light Waterproof DC 12V

Quick Detail:

1,12/24VDC

2,  IP67

3,1pcs of CREE/Edison high bright 1W/3W LEDs

4,304&316#stainless steel cover

5,60cm H05RN-F waterproof and oilproof cable

6,8mm step tempered glass

Specification:

Model Number: AL-UG01-1E1W/1E3W/1E3F

Input voltage: 12/24VDC

Color: RGB(3in1)/RGB/R/Y/B/G/W/WW

Standard: CE certification and RoHS compliance

LED Power: 3 x 1W/3 x 3W

Output Current: 350-700mA

Power Consumption: 3W or 9W

Net weight: 0.71Kg

Beam Angle:15/30/45/60

IP Rate: IP67

Size:Dia50*65mm

Cover: 304\" stainless steel

Lens: all-in=one optical lens,efficiency≥85%

Glass: step tempered glass T=8mm

Loading capacity: exert force area of ?10=660kgs ?30=1840kgs

Waterproof cable gland:  IP-68 PG-9PVC

Waterproof seal: molding shaped double silicone seal

LED: Emitter type power LED

Driver: Constant current output

            Single color LED=1-circuit output

            RGB 3in1 LED=3-circuit output

Operating tenperature: 0-40 degree

Features:

1. Energy-saving
2. Environment protection
3. High brightness
4. Anti-shock, anti-vibration
5. Purity color and more than 16,770,000 kinds of color output
6. Long lifespan, up to 50,000 hours
7. Easy to install and operate
8. Stainless steel panel

Applications:

Specially designed to be applied in courtyard ,stages,recessed wall,lawns,parks,parking lots and gardens

and it can be installed in pavement,baseboards,etc.Not suitable for using underwater.
