H.264 WIFI Mobile DVR With GPS With 8V - 36V Power Input
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | Huaheng | Place of Origin: | China | Model Number: | VC-MDRS3045 |
Product Description
Certification:ISO
H.264 WIFI Mobile DVR With GPS With 8V - 36V Power Input
Quick Details:
1.Support HDD/SSD+SD storagy:
2.Support H.264 High Profile video compressionl;
3.Support 8-36V wide power input;
4.Support 4ch video input;
5.Support 4ch audio input;
6.Support alarm trigger;
7.Support 3G function for optioanl;
8.Support GPS function;
9.Support WIFI function for optional;
10.Support G-sensor function for optioanl;
Descriptions

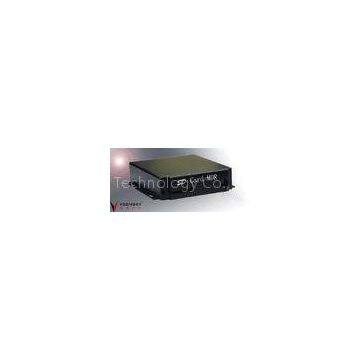

This Mobile DVR supports 1/2/4 channels of video, 1 channels of audio input and gives users the option of selecting recording resolutions from CIF(352x288) to D1 (704x576). This device used the SD card as the storage form to record video and it can be removed and connected to a standard PC to view recorded video. It supports GPS function for optional . This mobile solution comes complete with everything required for simple installation.
This mobile solutions are currently being used in the following applications:
Law Enforcement - Patrol Cars Military - Tanks Emergency – Ambulances, Fire Trucks Public – Buses, Trains, Railways, Subways Commercial – Boats, Heavy Equipment, Limousines, Taxis, Vans Transportation - Freight Liners Aviation – Helicopters, Commercial and Private AircraftSpecifications
Operation System |
Embedded Linux Operation System |
Operation Interface |
support mouse,remote control operation |
Video Standard |
PAL,NTSC |
Video Compression |
H.264 |
Audio Compression |
ADPCM |
Recording Mode |
Manual,Timing,Alarm,Motion detection |
Search Mode |
By time,event,channel |
Backup Mode |
USB backup |
Video Input |
4 ch |
Video Output |
1ch |
Audio Input |
1 ch |
Audio Output |
1ch |
Live Video Resolution |
PAL:720x576(D1);NTSC:720x480(D1) |
Playback Resolution |
PAL:352x288(CIF);NTSC:352x240(CIF) |
Image Control |
1-6 level are selectable |
Motion Detection |
Each channel can set independent detection zones and multilevel sensitivity |
Video Display |
multiple screen display:1/4 |
Recording Speed |
PAL:25f/s(Adjustable) NTSC:30f/s(Adjustable) |
Recording Storage |
SD card |
Local Playback |
1--4 channel playback |
Alarm Input |
4ch input |
Alarm Output |
1ch output |
PTZ Control |
RS485 |
USB Interface |
One USB2.0 Port |
Power Supply |
DC 6-36V |
Play back software
