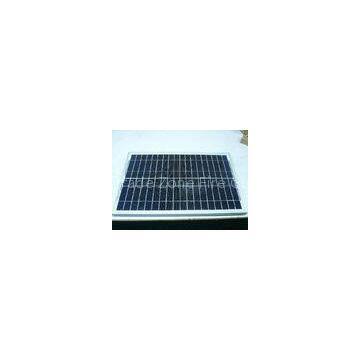

3.2 - 5mm Toughened Solar Panel Glass For Solar Collector , Solar Green Energy , Heat Absorbing

3.2 - 5mm Toughened Solar Panel Glass For Solar Collector , Solar Green Energy , Heat Absorbing

Quick Detail:

Place of Origin: Suzhou China (Mainland)

Brand Name: Fire Glass

Model Number: Silkscreen glass

Shape: flat

Size: All size

Technique: Coated Glass, Stained Glass, Tinted Glass

Type:Float Glass

Application:Decorative Glass,Heat Absorbing Glass,Heat Reflective Glass

Thickness:3 - 19mm

Composition: Toughened Glass

Max size: 3660mmx15000mm

Colour: Clear and others

Quality: Super quality Temperable and auto grade

Package: Paper or powder interleaved pieces, easily-dismantled iron racks and wooden crates packing, easily storage, and suitable for long distance sea and in land transportation.

Description:

It is widely used in Parabolic Trough Technology of the concentrating solor power(CSP) field with the earliest commercialized operation and the most mature technology.

Parabolic Groove Solar Mirror: It will take a large area of parabolic trough solar mirrors, to track the sun and achieve the maximum sunshine concentration on the collector tube,the transferred fluid in the tube will collect the solar radiation and convert the solar energy into heat, the heat will generate steam to drive the steam turbine to generate elecricity.

Thickness:3.2-5mm

Max Size: 1700*1641(outer)1501(inner)mm*5770mm(parabolic width)/1570*1900mm(outer and inner)6770mm(parabolic width) Annual Capacity: 3.6 million m2/year

Applications:

It is widely used in Parabolic trough Technology of the concentrating solor power(CSP) field with the earliest commercialized

Specifications:

Technical working process control:

1. Glass: high quality Low-iron float glass with min.91% light transmittance.

2.Deep Processing:automatic CNN equipment to ensure high precision deep processing.

3.Bending and Tempering: Using the most advanced tempering furnace from Glasstech of USA and professional testing equipment for parabolic trough solar mirrors from Germany to ensure the accuracy of glass curvature and quality .

4.Mirroring: Running professional and high-efficiency parabolic trough mirror production line:Silver Coating:silver layer thickness≥1600mg/m2;Copper Coating:copper layer thickness≥320mg/m2;Painting: special UV resistance solar mirror paints(lead content≤50PPM,viscosity:25-50S,hardness:3B,Paint layer thickness≥110UM);Curing temperature of paints:monitoring the inlet and outlet temperature strictly for each drying sector.

5.Finished Product Inspection: Inspect the final reflecttivity and focus of the parabolic solar mirror relying on the advance facilities.

6.Ex-factory Inspection: Every finished glass shall pass three quality inspections for all varies of articles ensuring perfect quality.

7. Packaging: All kinds of strong and seaworthy packing way can be offered, eg. wooden crates,steel racks and customized packing materials.
