Certification:ROHS ISO9001

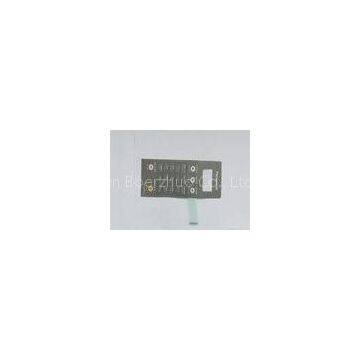

LED Embedded Black Membrane Touch Switch For Electric Weighing
Quick Detail:
> Total thickness : 1.0 mm
> Layer 1 : 0.188 PET
> Layer 2 : adhesive DT 6100
> Layer 3 : 0.125 mm top circuit
> Layer 4 : 0.125 bottom circuit
> Layer 5 : national rear adhesive
> Window : glossy
> Pitch : 2.54 mm
> Button : flat
> Operating condition : 40°c,90%~95%,for 240 hours
> Life span : 300 million times
Applications:
1. A. For measuring device, such as analytic instrument, nautical intrument , medical equipment and so on
B. For mechanical and electrical products such as CNC machine electric weighing ,robot ,printing machine, function keyboard, monitor, printer, graphic plolter and so on .
C. For domestic appliance , remote control ,electronic lock , washing machine , microwave oven ,electric cooker ,sound installation and so on
D. For OS office system , such as telephone set ,fax machine, copy cat ,counter and so on .
E. For electronic toy, such as electronic organ, recreational machine, electronic target and so on .
3. Note:
Metal dome’s feet can’t be folded 90 degree toward its top when use , it will reduce the life span of metal dome
Tail end inserting to female connector usually only allowed no more than 20 times
Specifications
|
Model |
6-16 |
|
Graphic overlayer |
F150 |
|
Embossed style |
Metal dome |
|
Adhesive |
3M467 |
|
Resistance |
100 ohm |
|
Pitch |
1.0 mm |
|
Tolerance |
0.05 mm |
|
Printing Colors |
Transparent, red, yellow, blue ,black ,grey |
|
Window |
Transparent clear glossy |
Description:
> Surface : glossy
> Overlay button : flat
> Color : 4
> Led window : without
> Circuit crossing : yes
> Conductive side :top side conductive
> Tolerance:0.05 mm
> Water proof class : IP 67
> Connector : without
> Matching color: Pantone and RAL color matching system.
Communication with customers
A: Hello, Can you help me ? What’s the different from membrane switches and membrane panel ?
B: Dear, the most difference is that membrane switches with circuit layer ,however membrane panel without .
A: What’s the lead time for sample and mass order ?
B: 7 Days is okay after drawing confirmed for sample ,mass order usually 15-20 days ,depend on the products..
A:Which shipping partner is available ?
B: DHL, UPS, TNT, FEDEX, forwarder are okay. Which shiping cost is cheaper and speed is good, i will suggest to you. 3-4 days can arrive.
A: How long is your quality guarantee period
B: in usually,3 months.
A:Great, TKS. Do it.
