Certification:CE,ROHS

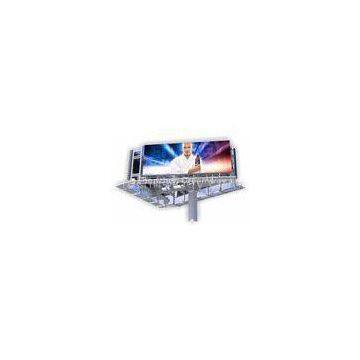

OPTO / SILAN PH10 Outdoor LED Billboard with 160 by 160 mm LED Module
Quick Detail:
1. 16×16 dots per module;
2. 160×160 mm LED module;
3. 960×960 mm LED box;
4. OPTO / SILAN LED chip;
5. DIP346;
6. MBI5024 IC.
Detail Description:
More than 7500 nits per square meter, totally visible in sunlight;
Control distance could be as long to 10km by using optical fiber;
Nova sending and receiving card, with high refresh rate.
Application:
It is installed on the road street to show eye-catching ads.
Specifications:
|
Pixel Pitch |
10mm |
|
LED Composition |
1R1G1B |
|
LED Type |
DIP346 |
|
Resolution |
10,000 dots/sq.m |
|
Module Pixel |
W 16 × H 16 |
|
Module Size |
W 160 × H 160 mm |
|
Standard Cabinet Size |
W 960 × H 960 mm |
|
Cabinet Color |
Black |
|
Cabinet Material |
Steel waterproof cabinet |
|
Drive Method |
1/4 scan constant current |
|
Brightness |
≥7500 CD/sq.m |
|
Refresh Rate |
≥800Hz |
|
Out of Control Dot Rate |
＜0.0001 |
|
Earth Leakage Current |
＜2mA |
|
MTBF |
＞5,000 hours |
|
LED Life Span |
＞100,000 hours |
|
Power Supply |
110V/60HZ and 220V/50HZ interchangeable |
|
Humidity |
10%~90% |
|
Control Method |
Synchronous control with PC on |
|
Operation System |
Win2000 / XP / Vista |
P10 Outdoor LED Billboard, Big Outdoor LED Billboard, Outdoor LED Billboard Display
