Certification:CE ROHS

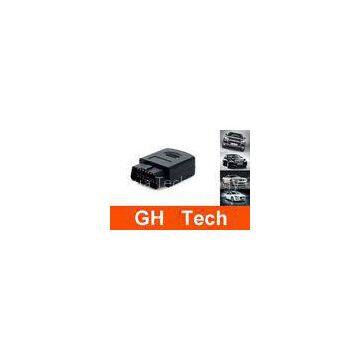

Low power consumption OBD 2 scanner GPS Tracker for car remotely tracking and car engine diagnose
1:GPPS Tracker OBD overview
G-T001 is a smart GPS Tracker OBD terminal with the features of below: rapid acceleration, abrupt deceleration, average speed, frequency of excessive speed, average speed of excessive speed, highest speed of excessive speed, frequency of drowsy driving, average duration of drowsy driving will be record by the terminal. Based on this data, it’s easy to analyze the driving behaviors.
Attention:only the car produced after year 2000 then can it be used on the car your owned.
Support protocol of engine
J1850 PWM
J1850 VPW
ISO-9141-2
ISO-14230 KWP2000
ISO-15765 CAN
2:Main Application Field
Insurance Company
Taxi Rental Company
4S Group repair shop
Vehicle Factory
Personal vehicle owner
Enterprise Group Fleet Management
Government Vehicle fleet Management
If the speed is higher than the set value, the buzzer will sound alarm tone every three minutes and if the coolant temperature is higher than the set value, the buzzer will sound alarm tone every three minutes.
3:Specification
|
Item |
Parameter |
|
Dimensions |
51.3 x 46.0 x 24.3 (mm) |
|
Operating Temp |
-25°~ +75° |
|
Power Consumption |
200mA (Data logging) 55mA (Sleep) |
|
OBDII Protocols Supported |
J1850 PWM J1850 VPW ISO-9141-2 ISO-14230 KWP2000 ISO-15765 CAN |
|
GSM |
EGSM900/1800MHZ GPRS Cl. 10 |
|
Accelerometer |
Axes x/y/z Range -16g ~ +16g Sensitivity 3.9 mg |
|
Antenna |
Built-in Quad Band GSM Antenna Built-in GPS antenna Optional External GPS Antenna |
|
Status Indicators |
GSM Indicator GSM Indicator OBD Indicator |
Main features
3.1Buzzer alarm
Excessive speed:If the speed is higher than the set value, the buzzer will sound alarm tone every three minutes.
Coolant temperature: if the coolant temperature is higher than the set value, the buzzer will sound alarm tone every three minutes.
Drowsy driving: if the duration of driving is higher than the set value, the buzzer will sound alarm tone every three minutes.
Serious engine fault: If a serious engine fault occurred, the buzzer will sound alarm tone every three minutes.
Normal engine fault: if a normal engine fault occurred, the buzzer will sound a BEEP tone.
3.2 Enable vibration detection
When engine was off and the OBD indicator was in On permanently status, call the terminal through the registered Phone number, the terminal will hang up the phone call and the vibration detection function will be enabled.
The terminal will enter into the vibration detection status when the OBD indicator was on for two minutes.
Once a vibration was detected, an alarm SMS will send to the registered phone number.
3.3 Disable vibration detection
After enabled the vibration detection function, call the terminal through the registered phone number, the terminal will hang up the call and disable the vibration detection function.
When engine was turned on, the vibration detection function will be disabled.
3.4 Voice monitoring
Call the service center through the registered phone number, after authorization, the voice monitoring will be enabled.
Call the terminal through the registered phone number, the terminal will answer the phone call and enter into the voice monitoring status.
Hang up phone call, the voice monitoring will be ended.
If you need monitor again, please call the service center.
3.5 Real time tracking
Call the service center through the regi
