Sand Blasting Roller Wind Tower Production Line Standard Motorized 100 T

 Sand Blasting Roller Wind Tower Production Line Standard Motorized 100 T

Quick Detail:

There are five parts for this line:

1.Sheet Processing & Bending

2.Single Section Welding ----One section Longitudinal seam welding

3. 1+1 Section fit up & inner/outer Circular Seam Welding

4. 2+2 fit up & inner/outer Circular Seam Welding/ Growing Line welding system

5.Sand Blasting & Painting for Tower

Description:

1. Sheet Processing & Bending

Steel plate shot blasting/cleaning. ------Shot Blasting Machine

Steel plate cnc fan shape cutting-------CNC Flame/Plasma cutting machine.

Beveling Processing -------Groove Milling Machine.

Bending Processing---------Steel Plate Rolling Machine.

2. Single Section Welding ----One section Longitudinal seam welding

Related Equipments:

Lead screw type roller beds/Turning rolls.

Column & Boom Manipulator

Some of section need to weld to flange,it need:

Tilting type rotator

Column Boom & Manipulator

3. 1+1 Section fit up & inner/outer Circular Seam Welding

Related Equipments:

1+1 Fit up system-Fit up turning rolls

Circular seam inner /outer seam welding ---Column & Boom Manipulator

4. 2+2 fit up & inner/outer Circular Seam Welding/ Growing Line welding system

Related Equipments:

Fit-up roller, motorized moving turning rolls.

Fixed and moving type Column Boom & Manipulators

5. Sand Blasting & Painting for Tower

Related Equipments:

Sand Blasting Turning Rolls with motorized moving.

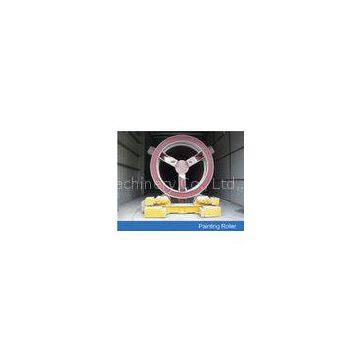

Painting turning rolls--with motorized moving.

Applications:

Widely used for wind tower & pipe fabrication.

Competitive Advantage:

1. Wind tower production line factory layout design.
2. Wind tower production equipment commissioning and training.
3. Long-term after sale service.
