Certification:CE, ASME
Quick Details:
type: AC Autoclave
Medium: Saturated steam
Designed pressure:1.6Mpa
size: Ø 1.6m, Ø 2m, Ø 2.5m, Ø 2.68m, Ø 2.85m, Ø 3m, Ø 3.2m
Applications: Wood, Brick,Rubber, Food, Glass industry

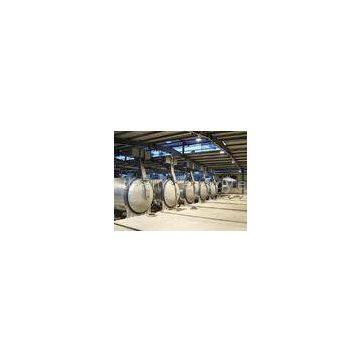

Professional Large - Scale Steam Chemical, Textile, Wood AAC Brick Autoclave, Diameter 2.85 Meter
Description:
Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel.
This product is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, metallurgy, military industry. Convenient operation, security and reliable are its advantages.
Specifications:
|
Item |
Type |
||||||
|
FGZSS 1.5-1.65*L |
FGZCS 1.5-2*L |
FGZSS 1.5-2.5*L |
FGZSS 1.5-2.68*L |
FGZSS 1.5-2.85*L |
FGZCS 1.5-3*L |
FGZCS 1.5-3.2*L |
|
|
Inner diameter |
Ø 1.6m |
Ø 2m |
Ø 2.5m |
Ø 2.68m |
Ø 2.85m |
Ø 3m |
Ø 3.2m |
|
Length |
L |
L |
L |
L |
L |
L |
L |
|
Designed pressure |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
1.6Mpa |
|
Designed temperature |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
204℃ |
|
Max operation pressure |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
1.5Mpa |
|
Max operation temperature |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
201℃ |
|
Medium |
Saturated steam |
||||||
|
Track gauge/height |
600mm/ 150mm |
600mm/ 150mm |
800mm/ 200mm |
800mm/ 250mm |
963mm/ 280mm |
1220mm/320mm |
1220mm/ 320mm |
|
Corrosion allowance |
2mm |
2mm |
2mm |
2mm |
2mm |
