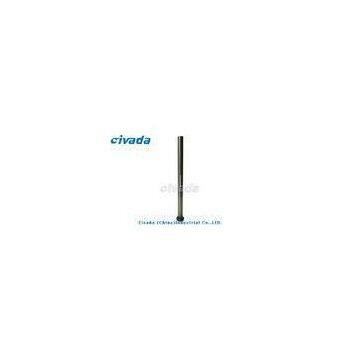

DANLY / DME / HASCO Ejector pin TiN TiCN HW coating SKD 61 black head pin
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Internal gear 40cr 41A0076 for Liugong loader parts ,axle parts
- Liugong Wheel loader parts Liugong spare parts SP104817 Gland
- Liugong Spare parts Castle nut 03B0050 Standard parts for Liugong Wheel loader parts
- Conical roller bearing 23B0019 Standard parts for Liugong Wheel loader parts
- Liugong spare parts flasher relay 31B0005 fpr Liugong Wheel loader parts
- Air tank assembly ,pressure controller 13C0015 for Liugong Wheel loader parts
Product Details
Brand Name: | CIVADA | Place of Origin: | China | Model Number: | EJ-S019 |
Product Description
Certification:IAF
DANLY / DME / HASCO Ejector pin TiN TiCN HW coating SKD 61 black head pin
1. Material
SKH 51-- JIS High Speed Steel ( M2 )( 1.3343 ) equivalent SKD 61-- JIS Die Steel ( H13 )( BH13 )( STD61 ) ( 1.2344 ) equivalen 65 Mn , SUJ2 , HSS , etc2. Hardness
58 to 62 HRC or depends on processing materials3. Specifications
Standards : MISIMI / DIN / AISI etc. Mounting method flange fixing Further dimensions, lengths and materials available on request Customized sizes are accepted Service: OEM available , and standard with stock Closest tolerance : shaft 0 ~ - 0.01 mm , head 0 ~ - 0.05 mm Polishing: can make close to Ra 0.4 standard is R0.8 Good-quality and precision Nitrogen treatment to improve the hardness More products can be produced according to DANLY / DME / HASCO / TOHATSU / FIBRO / AGATHON / STRACK / PEDROTTI / RAYMOND / FUTABA / SANKYO / PROGRESSIVE / RABOURDIN , etc.Application
Plastic injection mold components Ejector pins are used to eject completed parts from die moulds and are commonly used inthe plastics, automotive, aeromotive and medical industries, amongst others. A blade shape is used when
there is only a small surface area on the finished part. They are also known as knockout pins, knock-out
pins or KO pins. When the mould is opened, the pins extend into the mould cavity, push the part out, and
then retract, allowing the mould to close and be refilled.
Important factors to consider when selecting ejector pins are corrosion resistance,durability, tolerance and tensile strength. Ejector pins can be made with a variety of treatments, which
affect the hardness of the pin. By choosing the right ejector pin for the application, the lifespan and
durability of the pin will be enhanced.
Through hardened pins are good all-purpose steel pins that are heat-treated to be uniformlyhard throughout their diameter. They are often used for injection moulding of plastics and can be used in
cooler moulding environments below 200°C.
Case hardened pins are nitrided pins that are suitable for die casting and can be drilled ortapped. They can be used at temperatures above 200°C and are quite durable. They can chip when
compared to through hardened pins but have a greater life expectancy at higher temperatures.
Blackened or oxidated ejector pins are designed for extremely high temperature workingenvironments. They can be used at temperatures from about 600-1000°C. These ejector pins have a self
lubricating surface coating that allows them to be used at these high temperatures.
Ejector pins can be further enhanced by our TiN TiCN HW coating and other coatings whichprotect them and make them more durable. These coatings work by reducing friction so that the pins
become more wear resistant and the ejection of the part becomes more consistent.
Ejector sleeves are hollow and can be used to protect and guide the pin, further enhancingits lifespan.
Machinery & Equipments
CNC machining center; CNC lathe; Normal lathe; CNC milling machine; General punching machine, CNC turning center; Wire EDM, etc. And we also can offer 4 or 5 axis-CNC center processes. General milling machine; General drilling machine; General planning and grinding machine
Further Information
Testing |
Digital Height Gauge, caliper, Coordinate measuring machine, projection machine, |
QC |
1) Technicians self-check in production |
Main Markets |
North America, South America, Eastern Europe , West Europe , North Europe, |
Packing & Delivery
Package |
Coated with anticorrosive oil, packed in carton box |
|
Express |
DHL, FedEx, UPS, TNT,by Sea . |
