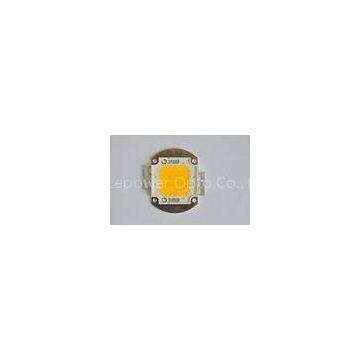

Epistar 100 Lm/W 70W Integrated LED Module 120 Beam Angle
- T/T L/C D/P D/A
- 7 days
You May Like
-
Bridgelux Chip 14W Street Light Module 70 CRI 2000 Lumen
-
14W Long Life Outdoor LED Street Lights Module 100Lm/W Natural White
-
14 Watt 2100Lm LED Street Light Module , Bridgelux LED Chip
-
Epistar Chip 3W High Power LED With 130 Lm/W For Street Light
-
130LM 1W High Power LED Warm White , 3.4V 550mA Bridgelux LED Diode
-
45mil Bridgelux 3W High Powered LED Natural White For Spotlight
Product Details
| Brand Name | Lepower | Place of Origin | China | |
| Model Number | LY-IH011007B4545 |
Product Description
Certification:CE, RoHS, EN62471
Epistar 35mil 6000lm 60W high power led module for led street light
Quick Detail:
70W power consumption 30-34V Voltage, max 2450mA Bridgelux 45mil led chip Warm white/Neutral white/Cool white optional Light efficiency 100-110lm/W, Ra>70 Size 40mmx40mm Working temperature -40—65℃ Beam angle 120° CE, RoHS, EN62471 compliance 2 years warrantyEpistar 100 Lm/W 70W Integrated LED Module 120° Beam Angle
Description:
Applications:
Specifications:
Electrical/Optical Characteristics (At TA=25°C)
|
Parameter |
Symbol |
Conditions |
Min. |
Avg. |
Max. |
Units |
|
Luminous Flux |
Φ |
IF=2450mA |
7000 |
-- |
8000 |
lm |
|
Color Temperature/ Color coordinates |
CCT |
IF=2450mA |
6000 |
-- |
6500 |
K |
|
Forward Voltage |
VF |
IF=2450mA |
32 |
-- |
34 |
V |
|
Thermal Resistance Junction To Board |
RΘJ-B |
IF=24500mA |
− − |
0.14 |
− − |
°C/W |
|
Reverse Current |
IR |
VR=34V |
− − |
− − |
2 |
μA |
|
Viewing Angle |
2Θ1/2 |
IF=2450mA |
− − |
120 |
− − |
Deg |
Absolute Maximum Rating(At TA=25°C)
|
Parameter |
Symbol |
Ratings |
Units |
|
Power Dissipation |
PD |
70 |
W |
|
Continuous Forward Current |
IF |
2450 |
mA |
|
LED Junction Temperature |
TJ |
120 |
°C |
|
Reverse Voltage |
VR |
34 |
V |
|
Operating Temperature Range |
TOPR |
-20°C To +60°C |
|
|
Storage Temperature Range |
TSTG |
-40°C To +100°C |
