Product Details
Brand Name | Peony | Place of Origin | China | |
Model Number | PDSF |
Product Description
Certification:ISO

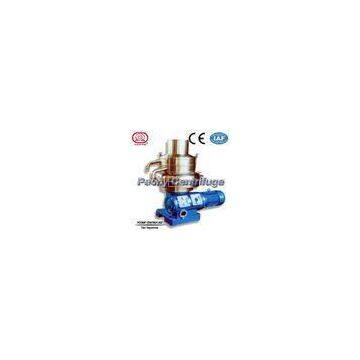

Centrifugal Oil Water Separator
Description:
Model PDSF Separator is mainly suitable for separating and extracting oil of animal and vegetable oil, especially suitable for separating feedstock containing large proportion of heavy phase, for example, fish oil. Heavy phase or light phase of higher pureness can be obtained after, separation, and solid particles can be removed from the min limit at discharge. All the parts in contact with the feedstock are made of stainless steel which are in conformity with the food sanitation requirement.
Commonly.during the fish oil extraction system,decanter centrifuge or the 3phase decanter centrifuge will be adopted together with disc separator to get more pure fish oil and more dry fishmeal.The equipment also is used to recovery the fish protein to get the effluent standard to protect the environment.After extraction of the fish protein water,the protein could be produced into the protein powder and add into the fishmeal to work as the foodstuff.
The machine consists of mechanical transmission part, drum, water equipment and frame
There are two types separation
1. Liquid-solid separation, that means separate the liquid and the insolvable solid particles
2.Liquid-liquid-solid separation, that means separate the different density and insolvable liquids
from the solid particles.
When machine runs in high speed, different density of the light phase, heavy phase, solid particles obtained the different G force for separation.
Material is feeding from the upper pipe and entering into the distributor till the disc plates, The light phase, heavy phase and impurities will obtain the different G force and form the layer under the strong centrifugal force, because of their different density, This machine adopts the partial discharging structure which will make less wastage, all parts contact are made in Stainless Steel which meet the requirements of the food sanitation..
Simple processing flowchart
PDSF Main Technical Parameters
Model |
PDSF-1500 |
PDSF-3000 |
Capacity |
1500L/h |
3000L/h |
Rotating speed |
6425rpm |
? |
Means of sediment discharge |
Partial Discharge |
Partial Discharge |
Weight |
490 KG |
790KG |
Overall size(LxWxH) |
1000x900x1290(mm) |
1570x1450x1830(mm) |
As we introduced above,the disc separator should be matched with decanter or tricanter (3phase decanter centrifuge),the detailed introduction please review our other products introduction.
