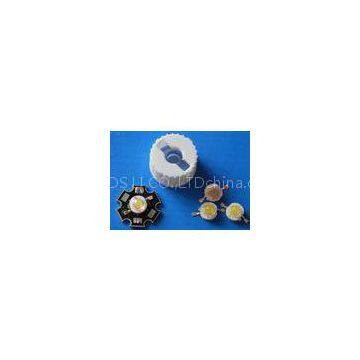

455 - 460nm Blue High Power LED 1 Watt for Residential Lighting , 5 Years Warranty
Quick Detail:
Features
● Super bright LED Blue 20-25lm
● Led chip from Epistar and Bridgelux.
● long lifespan (up to 100k hours)
● Available in White: 2500K-25000K
● Lambertian radiation pattern
●1:6 efficiency than incandescent and most halogen lamps
● 3-3.2V low working Voltage
● Cool beam, safe to the touch (90-120-140degree)
● High Intensity brightness
● Superior ESD protection
● High CRI 85-90
● RoHS CE certificates
● 5 years warranty
Applications:
Applications:
All general Indoor lighting and outdoor lighting:
| Led Spotlight | under water lamp | Led ceiling light | Led street light | Led bulb |
| under ground light | led fluorescent tube | Led surgery light | Led garden light | Down light |
| Led flood light | Led decorative light | Led desk light | Led dancing light | Ceiling light |
| plant growing light | high power led bay light | Led aquarium light | Led tunnel light | Candle light |
| Led projector | LED Flash light | led sign board | Led traffic light |
car head light |
Specifications:
|
Name |
Model |
color |
Angle (°) |
wave length/Color Temperature (IF=350mA) |
Luminous flux (IF=350mA) |
forward voltage (IF=350mA) |
||||
|
min |
max |
MIN |
MAX |
min |
max |
|||||
|
1W |
TDS-P001L4N04 |
RED |
140 |
625nm |
630nm |
30 |
40 |
1.9 |
2.4 |
|
|
TDS-P001L4N05 |
RED |
140 |
650 |
660nm |
10 |
20 |
1.9 |
2.4 |
||
|
TDS-P001L4K03 |
YELLOW |
140 |
585nm |
590nm |
30 |
35 |
1.9 |
2.4 |
||
|
TDS-P001L4D02 |
BLUE |
140 |
460nm |
465nm |
15 |
20 |
3 |
3.4 |
||
|
TDS-P001L4F05 |
GREEN |
140 |
520nm |
525nm |
60 |
70 |
3 |
3.4 |
||
