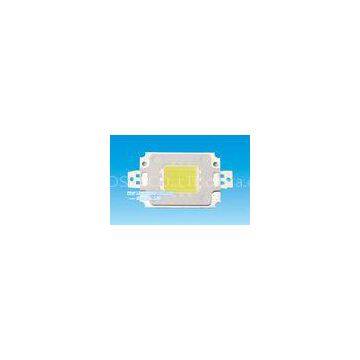

5000K - 6000K Pure White 30W High Power LED For LED Projektor , Bridgelux Chip 45 X 45MIL

Tds Li Co.,ltd

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

TDS

Place of Origin:

China

Model Number:

TDS-P030LA Series

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name TDS

Place of Origin China

Model Number TDS-P030LA Series

Delivery Time:2-5 days / Depends on the Production Order
Certification:CE ROHS

5000K - 6000K Pure White 30W High Power LED For LED Projektor , Bridgelux chip 45 X 45MIL

Quick Detail:

Features

● Highest flux per LED family in the world / 4500lm

● Led chip from Epistar and Bridgelux. 45X45MIL

● Long lifespan(up to 100k hours)

● Available in White: 2500K-25000K

● Lambertian radiation pattern

● Same as the brightness of 180W halogen lamp.

● Low voltage DC 12V / D24 operated

● Cool beam, safe to the touch (180 degree)

● 10W LED lens with reflector can be available.

● Connection: Different connections.(Check following 5-100W led diagram)

● Superior ESD protection

● RoHS CEcompliant—lead-free

● Instant light (less than 100ns )

Applications:

All general Indoor lighting and outdoor lighting:

Specifications:

Name	Model	Color	Angle(°)	wave length/Color Temperature (IF=2000mA)	Luminous flux (IF=2000mA)	forward voltage (IF=2000mA)
MIN	MAX	MIN	MAX	MIN	MAX
30 watt LED	TDS-P030LRC11	RED	180	620nm	625nm	300	400	12	15
TDS-P030LAD18	BLUE	180	460nm	465nm	400	550	12	15
TDS-P030LAF25	GREEN	180	520nm	525nm	1000	2200	15	17
TDS-P030LAO27	WHITE	180	2000K	3000K	2000	2800	15	17
TDS-P030LAQ27	WHITE	180	3000K	4000K	2000	2800	15	17
TDS-P030LAS27	WHITE	180	4000K	5000K	2000	3000	15	17
TDS-P030LAU27	WHITE	180	5000K	6000K	2000	3000	15	17
