Braided Trunk Cable For CATV, 75 Ohm RG500 Coaxial Cable With ANSI/SCTE Standard

Name: Braided Trunk Cable For CATV, 75 Ohm RG500 Coaxial Cable With ANSI/SCTE Standard
Brand: Libo
SKU: 149139366
Availability: InStock

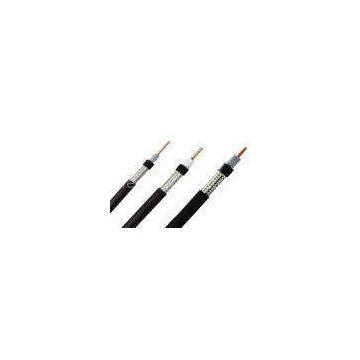

Braided Trunk Cable For CATV, 75 Ohm RG500 Coaxial Cable With ANSI/SCTE Standard thumbnail-1

Braided Trunk Cable For CATV, 75 Ohm RG500 Coaxial Cable With ANSI/SCTE Standard photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Libo

Place of Origin:

China

Model Number:

RG500 cable

Contact Supplier Request Quote Chat Now

Libo Electric Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Libo

Place of Origin China

Model Number RG500 cable

Delivery Time:Within 10 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

Braided Trunk Cable For CATV, 75 Ohm RG500 Coaxial Cable With ANSI/SCTE standard

Product description:

Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% aluminum wire braid; PE for outer sheath.

Center conductor:

Bare copper

Nominal diameter: 2.77mm

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 11.43mm

Shield:

1st shield: BAPA

2nd shield: aluminum wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.

PE Jacket:

Nominal diameter over jacket: 14.43mm

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 86% nominal

V.S.W.R: 1.25

Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100 meters(MAX.)
10	0.90
50	1.90
150	1.86
250	3.39
350	4.38
450	5.20
750	5.82
864	7.29
1000	8.40

Applications:

CATV-community antenna television CCTV-closed-circuit television DBS-direct broadcasting satellite

Competitive Advantage:

Outstanding electrical performance sends all the right signals.

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area. Libo cable has a stable workforce and engineering team, we offer products with short lead-time and high quanlity. Our production and testing procedures all strictly follow requirement of ISO9000, and ISO14000. Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies or dealers since 1994.
