Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

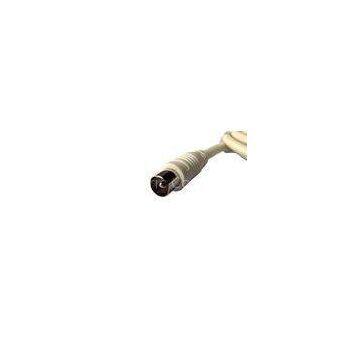

UV Stabilized Jacket CCTV Coaxial Cable, braiding coaxial cable, RG59 75 ohm Coaxial Cable for Indoor CATV System
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.151inches (3.84mm)
2st shield: 34 AWG (0.12mm) aluminum braid wire, 65% coverage.
Product description:
Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, 65% braid, UV stabilized jacket.
Center conductor:
20AWG copper clad steel
Nominal diameter: 0.32inches (0.81mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.144inches (3.66mm)
Flame retardant PVC Jacket:
Nominal diameter over jacket: 0.24inches (6.10mm)
Nominal jacket thickness: 0.032inches (0.81mm)
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
|
@Frequency MHZ |
dB/100ft. (MAX.) |
dB/100 meters(MAX.) |
|
5MHZ |
0.86 |
2.82 |
|
55MHZ |
2.05 |
6.73 |
|
83MHZ |
2.45 |
8.04 |
|
187MHZ |
3.60 |
11.81 |
|
211MHZ |
3.80 |
12.47 |
|
250MHZ |
4.10 |
13.45 |
|
300MHZ |
4.45 |
14.60 |
|
350MHZ |
4.80 |
15.75 |
|
400MHZ |
5.10 |
16.73 |
|
450MHZ |
5.40 |
17.72 |
|
500MHZ |
5.70 |
18.70 |
|
550MHZ |
5.95 |
19.52 |
|
600MHZ |
6.20 |
20.34 |
|
750MHZ |
6.97 |
22.87 |
|
865MHZ |
7.52 |
24.67 |
|
1000MHZ |
8.12 |
26.64 |
Applications:
RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
