Product Details
Brand Name: | BST | Place of Origin: | China | Model Number: | GH025 |
Product Description

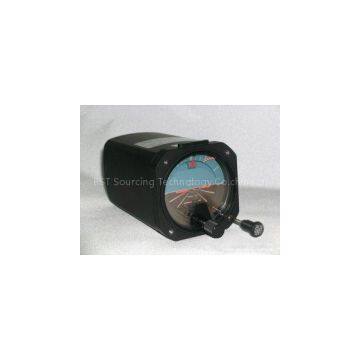

Banking and Pitching Gauge Ectrical Horizon Aircraft Gyro Instruments GH025
Part No: GH025
1.Indicating attitude (pitching or banking) of a small aircraft
2.Operating Voltage: DC14 ± 10%V, DC28 ± 10%V
3.Working Range: Banking 360°, pitching ± 80°
4.Weight 940g
Detailed Product Description
Indicating attitude (pitching and banking angles) of an aircraft.
SPECIFICATIONS:
A) Operating voltage: 14 ± 10% V DC
B) Ambient Temperature: -40 ~ +50°C
C) Relative Humidity: It can reach 95% at 20 ±5°C
D) Vibration Strength: not more than 1.5g
PERFORMANCE:
A) Working range: Banking 360°, Pitching ± 70°
B) Accuracy: The indicating error is not more than ± 1°
C) It will work normally when operation voltage is inputted 3min. and rotor stars and works when 80% operating voltage is below 80% of the rated volt
D) Operating current is not more than 0.8A.
E) Reference mark should be adjusted in the range of not less than ±5°
F) The Gyro can return to zero point from any point and lock-in.
G) The insulating resistance between the case is not less than 20MΩ.
H) It is in accordance with the standard of TSO-C4c.
