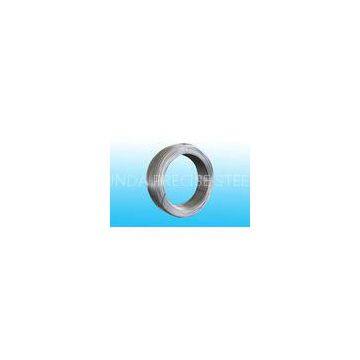

Steel Bundy Tube / Plain Tubes For Heaters 4.76 * 0.7 mm

Delivery Time:According to quantity about order
Certification:ISO9001,ISO14001
Steel Bundy Tube / Plain Tubes For  Heaters 4.76 * 0.7 mm

Thickness:0.7 mm
Section Shape:Round
Outer Diameter:4.76 mm
Application:refrigerator, freezer
low carbon steel strip
standard: GB/T 24187-2009


 Competitive Advantage:

Surface coated with antirust oil, has strong corrosion resistance,size is complete ,quality is best with competitive price .according country standard .

1.Materials: low carbon steel strip

2.Main use: widely used in wire-tube condenser, evaporators, refrigeration, chiller, heaters, freezer etc

3.outer diameter:4.76mm

4.wall thickness: 0.7mm

5. standard: GB/T 24187-2009

6.certification:also passed ISO9001 quality attestation system and ISO14001 Certificate of Environment Management  System

7.surface treatment: no coated

8. Features:soft  and easy to bend

9.tensile strength: more than 290 Mpa

10.yield strength:more than 180 Mpa

11.elongation:more than 25%

12. place of origin: changzhou city, jiangsu province, China.

13. port of loading:shanghai, China;

14. package:plastic cloth with coils, wooden boxes, iron pallets etc

15. delivery:as contract

16. supply ability:30000 ton per year

17. brand:WUSHUN

Applications:

 Plain steel tube is important part  of  refrigeration system ,mainly used in refrigerator, freezer ,condenser, evaporator etc,it is made  by material  low carbon steel strip

Specifications:

specification	dimensional tolerance	Mechanical properties
Diameter tolerance	Wall thickness tolerance	tensile strength	yield strength	elongation
plain tube for refrigerator  4.76*0.7mm	±0.08	±0.08	≥290Mpa	≥180Mpa	≥25%
