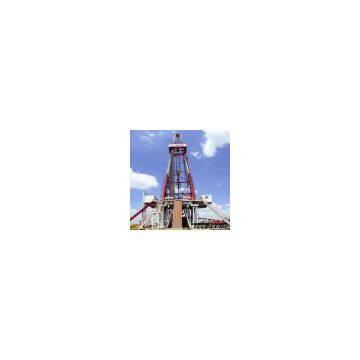

Electromechanical Combination Drive Drilling Rigs

Features:Electromechanical combination drive drilling rig is driven by AC frequency conversionelectric motor that is used by rotary table (drawworks and drill pumps adoptmachine drive.) Suitable for 114mm drill pipes and the drilling operation of oilwell, gas well and water well with a drilling depth from 4000m to 7000m.Drawworks and drill pumps adopt unified drive program of hydrodynamic drive, integralchain box paralleling. Drill pump is driven separately by two cardan shaftsafter paralleling that is finished by diesel engine hydraulic coupler advancingreducing gear box set via 6 shaft paralleling transmission case, whose output endadopts cardan shaft end-to-end joint transmission with the output end of drawworksto drive automatic air compressor and power saving electric generator through"V" tape. Generator room set is installed on base (the height is 0.8m).Two sets of auxiliary diesel generating set incorporate electric supply + electricsupply of power saving electric generator.Drawworks adopts hydraulic disc brake as main brake and Elton brake (or electromagnetic eddy current brake) as auxiliary brake for centralized control. Electro reducing set is used for automatic drill and emergency drive.Rotary table is driven through chain reducing gear box by AC variable frequency electricmotor, stepless speed regulation, which is suitable for high pulling torqueand operating requirement of high rotate speed drilling.The derrick is K type. Legs are on base under substructure, with great working stability. The derrick uses drawworks power to jack up integrally and could be suitablefor fixing 500 ton top drive.The types of drilling platform substructure have box on box type and helicospiraltype. The main components and equipment of drilling platform can be installed inthe condition of low level and use drawworks power to jack up integrally.Drilling rigs is equipped with VFD system and MCC system. VFD is used to controlrotary table AC variable frequency electric motor and automatic drill. MCC is usedto control other electro equipment. producing area:China
