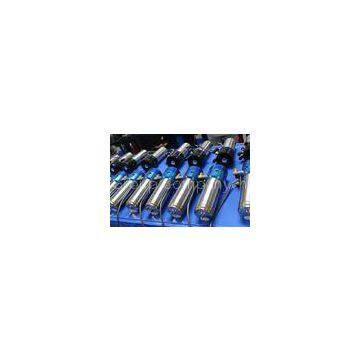

Low Dynamic High Frequency Air Bearing Spindle ABL H920B 200000RPM
- T/T L/C D/P D/A
- 7 days
You May Like
-
Westwind High Frequency Spindle Shafts High Precision Spindle Shaft D1264-07
-
PCB Drilling / Routing 125000 Rpm Spindle Shafts Westwind D1331-17
-
High Precision Westwind Spindle Shafts For SCHMOLL Machine D1686-10
-
D1686-16 Westwind Spindle Shafts CNC Router Spindle Shaft 180000 Rpm
-
WESTWIND WWD1822 200000RPM Water Cooled CNC Spindle Motor For HITACHI / LENZ Machine
-
WESTWIND WWD1822 Air Bearing Spindle Turning / Engraving Spindle For Klingenberg Machine
Product Details
| Brand Name | KLKJ | Place of Origin | China | |
| Model Number | KL200B |
Product Description
Certification:ISO9001:2008
Compatible ABL H920B 200,000RPM KL200B Air Bearing Spindle PCB PRECISION DRILLING
Quick Detail:
|
MODEL |
REPLACE FOR |
DESCRIPTION |
KEY PRECISION |
Machine reference |
|
KL200B |
H920B |
SPEED RANGE:20,000 - 200,000 rpm Ø6.35mm-0.05mm precision drilling |
Static Runout:<2µm Dynamic Runout:<7µm Max axial load:200N Vibration:0.8MM/S |
KLINGINBERG PLURITEC HITACHI LENZ Delta SCHMOLL ANDERSON …. |
PRODUCT DESCRIPTION
KL200B higher speed rotation and higher accuracy spindle replace for ABL H920B Full Range from 20,000 to 200,000 rpm, air bearing type in long life, spindle weight 3.5kg with COLLET size Ø1/8” and body size Ø 61.9
Competitive Advantage:
Low Static
Low Dynamic RUN OUT
Stable character and long life
Power and very low heat generation
ATC feeder / ATC tool change for micromachining
KLKJ Advantage
The higher spindle speeds available allow for increased productivity whilst ensuring that accuracy and repeatability is maintained.
Advanced analysis and detailed design has created a spindle with exceptional reliability and increased efficiency.
KLKJ strong team available allows increased productivity and efficiency.
APPLICATION :
PRINT CIRCUIT BOARD PRECISION DRILLING
HOLE RANGE: Ø6.35mm-0.05mm
MACHINE REFERENCE:KLINGINBERG PLURITEC ；HITACHI ；LENZ ；ANDERSON ….
SPECIFICATION:
|
Speed range |
20,000 - 200,000 rpm |
|
Air Pressure |
6.0 kgf/cm² |
|
Max power |
0.85KW |
|
Coolant |
Water oil |
|
Coolant water temperature |
20+2 |
|
Fixed voltage |
200V |
|
Fixed current |
3A |
|
Static runout |
<2µm |
|
Dynamic runout |
<7µm |
|
Max axial load |
200N |
|
Spindle weight |
3.5kg |
|
Vibration |
0.8MM/S |
|
Temperature sensor ohms KΩ |
R=10±3% AT 25℃ |
Compatible H920B 200,000RPM 200B Spindle drawing
