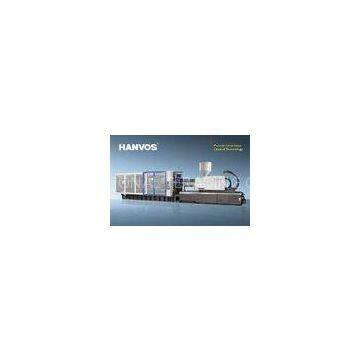

Large pellet Injection Molding Machine HW1200-1200Ton
Injection moulding machine HW series is general injection machine which is adopt five joint to toggle clamping system. Automatic adjustment system single or double injection cylinder machine injection.
INJJECTION UNIT
Double cylinder bananced injection system
According to the different characteristics of plastic can be configured professional screw barrel, to ensure that the manufactured goods quality requirements
Injection position monitoring function
Injection unit skidproof pattern aluminum cover
Screw driven by a hydraulic motor
Automatic discharging function
Screw cold start-up prevention
Barrel protection cover
CONTEROL UNIT
The barrel temperature error automatic calibration function
Detection of exceptional process alarm function, display fault diagnosis
The main electrical parts adopt the foreign famous brand, to ensure the safe and reliable operation of electrical equipment
Emergency stop protection
Temperature deviation display
Multiple pressure limiting function
CMLAMPING UNIT
Mold moving fast and smooth and the distance is larger
Electrical and mechanical safety protection device
HYDRAULIC UNIT
The main part of well-known brands abroad to ensure the quality stability of hydraulic components.
Low noise and high response pump system
It is a economic serises.
| MODEL | HW-1200 | ||||
| FIXED PUMP | |||||
| INJECTION UNIT | SCREW TYPE | UNIT | A | B | C |
| SCREW DIAMETER | mm | 115 | 120 | 125 | |
| SCREW L/D RATIO | L/D | 21.4 | 20.5 | 19.7 | |
| SHOT VOLUME | cm3 | 5713 | 6220 | 6750 | |
| SHOT WEIGHT | g | 5199 | 5660 | 6143 | |
| INJECTION PRESSURE | Mpa | 166 | 152 | 140 | |
| MAX. SCREW SPEED | rpm | 94 | |||
| CLAMPING UNIT | CLAMPING FORCE | kn | 12000 | ||
| SPACE BETWEEN TIE-BAR | mm | 1200*1100 | |||
| OPENING STROKE | mm | 1200 | |||
| MOULD THICKNESS | mm | 500-1200 | |||
| HYDRAULIC EJECTION FORCE | kn | 246 | |||
| HYDRAULIC EJECTION STROKE | mm | 325 | |||
| NO. OF EJECTOR PINS | pc | 21 | |||
| OTHERS | HEATING CAPACITY | kw | 58 | ||
| PUMP MOTOR | kw | 55+55 | |||
| HYDRAULIC SYSTEM PRESSURE | Mpa | 16 | |||
| OIL TANK CAPACITY | L | 1800 | |||
| MACHINE DIMENSION(L*W*H) | M | 13.7*2.8*4 | |||
| MACHINE WEIGHT | T | 67 |
