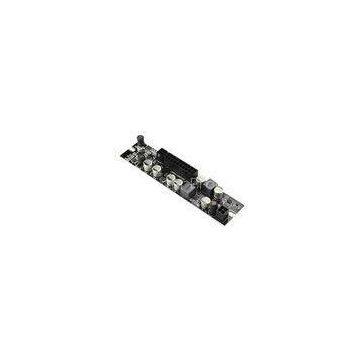

250W 12V Solid State DC-DC Power Module With Short Circuit Protection

250W 12V Solid State DC-DC Power Module With Short Circuit Protection thumbnail-1
250W 12V Solid State DC-DC Power Module With Short Circuit Protection photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
e.mini
Place of Origin:
China
Model Number:
LR1106-250W12VDCX2
Contact Supplier Request Quote Chat Now
Shenzhen Realan Computer Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name e.mini
Place of Origin China
Model Number LR1106-250W12VDCX2
Delivery Time:Within 2-7 working days after getting deposit
Certification:CE/RoHS

250W 12V Solid State DC-DC Power Module With Short Circuit Protection

Specifications

1. Good outside design
2. Solid efficient power board
3. Over voltage and short circuit protection

Realan ITX Power LR1106-250W12VDCX2

INPUT REQUIRED:

INPUT VOLTAGE RANGE: 11.4VDC—12.8VDC

INCOMING CURRENT RANGE: 20.0A Max @11.4VDC

INPUT SURGING CURRENT:25.0Vmax@12VDC

WORK EFFICIENCY: ≥85%

OUTPUT REQUIRED:

FIVE GROUPS OF POWER OUTPUT

Item

Output voltage

Output current(A)

min(V)

Avg (V)

max(V)

Ripple wave(mV)

Sb current

Avg

peak

+3.30V

+3.14

+3.30

+3.47

50

0

8.0

10.0

+5.00VSB

+4.75

+5.00

+5.25

50

1.0

1.6

2.0

+5.00V

+4.75

+5.00

+5.25

50

0

8.0

10.0

+12.00V

+11.20

12.00

+12.8

120

0

10.0

13.0

-12.00V

+10.80

-12.00

-13.20

120

0

0.1

0.15

Input/output interface:

Defencive function (for+3.3V,+12V,+5.00V&+5.00VSB power output)

OCP: output shut down when output current reaches the peak point.

Short-circuit protection: output shut down when short-circuit.

PSU timing sequence:

Environment description:

Working temperature/humidity 15°C to 35°C / 45%-75%

Reposition temperature//humidity -40°C to +70°C/ 10%-90%

Atmospheric pressure 86Kpa—106Kp

Other parameters:

Working frequency: Ic built-in oscillator (250-350) kHz@Vcc=12V

Feedback reference voltage:0.8V±2%@12VDC

Design drawing:

TOP

BOTTOM

SILKSCREEN TOP

PRODUCT OUTLINE DRAWING
