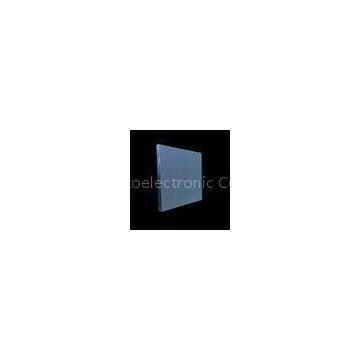

Energy-saving Indoor Full Color Rental Led Screen Panel With High Definition

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FENGLESS		Place of Origin	China
Model Number	FENGLESS

Product Description

Delivery Time:Any time
Certification:CCC CE EMC FCC RoHS

1,indoor LED panel
2,Competitive price
3,Good aftersales service
4,High definition,Long lifespan
5,CE,RoHS certification

Product features:
1) Super-thin and light cabinet can save room and time of installation.
2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
3) No image mosaic due to the excellent flatness and nice uniformity of light-emitting.
4) Wide viewing angles and the horizontal angle can reach 160°
5) High density make the images softer and vivider.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.

PLED-OF-P12 Module Parameter
Dimensions(w*h)	192mmx96mm	Resolution(W*H)	16x8
Pixel Pitch(mm)	12mm	Pixel Density	6944 Pixels/m2
Pixel Configuration	2R1G1B	Tual Pixel Density	6944*4 Pixels/m2
PLED-OF-P12 Cabinet Parameter
Dimensions(whd)	1152mmx768mmx150mm	Max Power/m2	880W
Physical Resolution(w*h)	96x64	Module Quantity	48
Weight/Cabinet	66kg	Physical Pixels(total)	6144
Average Power/m2	280W	Material	Steel
PLED-OF-P12 Cabinet Parameter
Parameter	Value	Gray Scale	4096
Brightness(calibrating value)	≥6500	Weight	75kg/ m2
Red Wavelength(dominant)	623nm±1.5nm	Colors Capability	30bits
Green Wavelength(dominant)	525nm±1.5nm	Refresh Rate(PAL/NTSC)	1000HZ
Blue Wavelength(dominant)	470nm±1.5nm	Minimum Frame Rate	300HZ
Brightness(max/min)	1.1:1	Drive Type	1/2duty, constant current drive
View Angle (min, 50% brightness)	Horizontal 160(+808-80)deg. Vertical 60(+308-30)	Scan Type	Static
Recommended Min. Viewing Distance	10	Control	Simultaneous with PC,? pixel to pixel
Brightness Control	256	Input Voltage	AC220V/50Hertz or AC110V60Hertz
Date Transmission	UTP	Color Temperature	Brightness of Red, Green and Blue adjustable by the software 100 grade. Color Temperature adjustable according to requirement
Digital Processing	12	Defects Rate	≤0.00001
MTBF	>10,000 hours	Life Span(50% Brightness)	>100,000 hours
Module Brightness Uniformity		Flatness	±1mm
Ingress Protection	IP65	Ventilation	Quite running fans
Earth Leakage Current		Operating Temperature Range	-40°C~+60°C
Display Input Format(With Video Processor)	DVI, VGA, S-Video, DVD, VCD, VHS.	Operating Humidity Range	10%~99%RH
System Operation Platform	WINDOWS(WIN98, WINXP, WIN2000)
