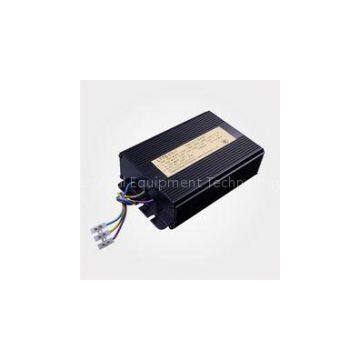

Help CenterHPS/MH Digital Ballast 70W
Related Products
Product parameters
1.1Input features (supply side)
| project | The work environment | min | rating | max | unit |
| voltage | The rated working range | 200 | 220 | 240 | V |
| Scope of work safety | 85 | 220 | 265 | V | |
| Power frequency | The rated working range | 47.5 | 50 | 63 | Hz |
| Scope of work safety | 45 | 50 | 66 | Hz | |
| The input power | The input voltage220V | 70 | 75 | 80 | W |
| Input current | Working voltage220V | ——— | 0.34 | ——— | A |
| The minimum safety voltage185V | ——— | ——— | A | ||
| Input current | The rated voltage range | 0.97 | 0.99 | ——— | ——— |
| harmonic | The input voltage220V | ——— | ——— | 8% | |
| Impact of current | The input voltage220V | ——— | ——— | 30 | A |
| Pulse duration | ——— | ——— | ——— | 0.8 | ms |
1.2 Output characteristic
| parameter | The work environment | min | Typical values | max | unit |
| The lamp power | The rated working voltage220V | ——— | 70 | ——— | W |
| The lamp voltage | The rated working range | 80 | 120 | 150 | V |
| The ignition voltage |
Distributed capacitance (output)<100pF | 3000 | 4000 | 5000 | V |
1.3 Match the light bulb ：HPS70W
2.The environment
2.1 the temperature
2.1.1 working temperature of ballast capacity using the environment temperature is 25 ℃ ~ + 65 ℃.
2.1.2 ballast transport transport and storage temperature and storage temperature requirements - 40 ℃ ~ + 70 ℃.
2.2 the humidity
2.2.1 work humidity ballast using the environment humidity requirement is 0% - 90%.
2.2.2 ballast should be able to withstand transportation and storage humidity environment relative humidity is 0% to 0%.
2.3 the surface temperature rise
2.3.1 ballast output 70 w, the environment temperature is 25 ℃, the input voltage of 220 v, ballast surface temperature is 25 ℃.
3.Physical parameters
3.1 ballast size: 165 mm x 100 mm x 50 mm, color: silver
Weight: 3.2 Kg
3.3 maximum temperature 25 ℃
3.4 the shell material: aluminum
3.5 input line length: 70 cm
3.6 the output line length: 25 cm
4.The characteristics and application scope
4.1 features
* energy saving
* Gao Liuming output
* no noise, no stroboscopic
* low starting current
* maintenance costs low
4.2 application range
Road lighting, tunnel lighting, factory, stadium.
