Product Details
| Brand Name | ARAL NFS | Place of Origin | China | |
Product Description

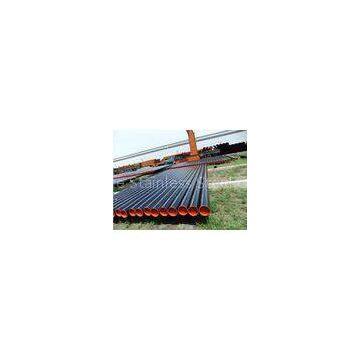

BS1387-85 BLACK Carbon Steel Welded Pipes A53 /API 5L GR.A, Gr. B, X56, X60, X65, X70, X80
ERW Line Pipe
Standard: API 5L
Steel Grade: GR.A, Gr. B, X42, X46, X52,X56,X56,X60,X70
ERW Galvanized Steel pipe
Standard: ASTM A53, BS1387 DIN 2440
ERW ASTM A178 Fire pipe
Standard: ASTM A53, ASTM A178
ERW Grooved Pipe
Standard: ASTM A53. ASTM A795
SSAW
Standard: ASTM, API, BS, JIS, GB, DIN
Steel Grade: Gr. A/B/C, X42-X80,
LSAW. UOE/JCOE
Standard: ASTM, API, BS, JIS, GB, DIN
Steel Grade: Gr. A/B/C, X42-X80
ERW Square/Rectangular tube:
ASTM A500, API, BS, JIS, GB, DIN16219/10210. Gr. A, Gr. B, Gr. C
BS1387-85 BLACK CARBON STEEL PIPE /ERW STEEL PIPE,light serie
|
nominal bore(mm) |
OD(light mm) |
thickness(mm) |
mass(kg/m) |
|
8 |
13.60 |
1.80 |
0.515 |
|
10 |
17.10 |
1.80 |
0.670 |
|
15 |
21.40 |
2.00 |
0.947 |
|
20 |
26.90 |
2.30 |
1.380 |
|
25 |
33.80 |
2.60 |
1.980 |
|
32 |
42.50 |
2.60 |
2.540 |
|
40 |
48.40 |
2.90 |
3.230 |
|
50 |
60.20 |
2.90 |
4.080 |
|
65 |
76.00 |
3.20 |
5.710 |
|
80 |
88.70 |
3.20 |
6.720 |
|
100 |
113.90 |
3.60 |
9.750 |
|
125 |
140.1 |
4.50 |
|
|
150 |
165.0 |
5.00 |
|
Carbon steel welded pipe manufacturing flow chart:
|
ERW STEEL PIPE |
|||
|
O.D |
O.D tolerance |
W.T |
Thickness Tolerance |
|
21.34—406.4mm |
±0.03 |
0.6—30mm |
±0.02 |
|
Length |
2—16m, according to the customers’ requirements |
||
|
International Standard |
ISO9001-2000 |
||
|
Standard |
ASTM A53 / BS 1387-1985 |
||
|
Material |
Q195/Q215/Q235/Q345/GR.B, GR.C |
||
|
Product Category |
Matallurgy, Mineral & Energy |
||
|
Technique |
Welded |
||
|
Packing |
In bundles or according to customers’ request |
