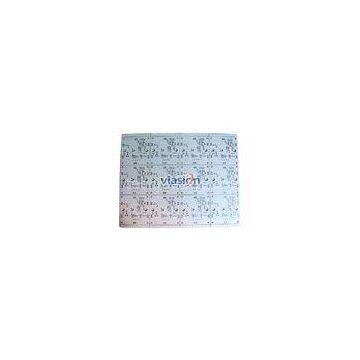

FR4 TG170 HAl Lead Free 2 Layer Rigid Printed Circuit Board PCB For LED

Viasion Technology Co.
FR4 TG170 HAl Lead Free 2 Layer Rigid Printed Circuit Board PCB For LED thumbnail-1
FR4 TG170 HAl Lead Free 2 Layer Rigid Printed Circuit Board PCB For LED photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
VIASION
Place of Origin:
China
Model Number:
VQ111
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name VIASION
Place of Origin China
Model Number VQ111
Delivery Time:2 weeks
Certification:UL, ISO9001, TS16949

FR4 TG170 HAl Lead Free 2 Layer Rigid Printed Circuit Board PCB For LED

Specification:

Material

FR4 TG170

Layer count

2 layers

Board thickness

1.6mm

Copper thickness

1oz

Minimum drill size

0.4mm

Minimum trace & gap

0.5mm

Surface finish

HAL lead free

Applications

LED

Special Technology

NO

PCB Circuit Board

NO

ITEM

Technical capabilities

1

Layers

1-20 layers

2

Max. Board size

508×610 mm

3

Min. board Thickness

2-layer 0.12mm

4-layer 0.4mm

6-layer 0.6mm

8-layer 0.90mm

10-layer 1mm

4

Min. line Width/Space

0.127mm(4mil)

5

Max. Copper thickness

5OZ

6

Min. S/M Pitch

0.075mm(3mil)

7

Min. hole size

0.15mm(6mil)

8

Hole dia. Tolerance (PTH)

±0.05mm(2mil)

9

Hole dia. Tolerance (NPTH)
