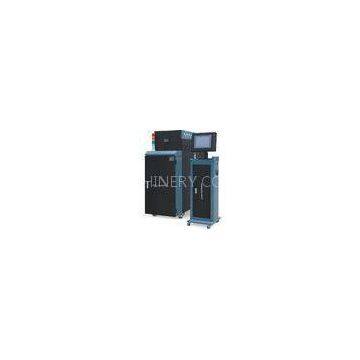

ROHS AFCH Quick Cooling / Heating Mold Temperature Control Unit / Controller

Delivery Time:20 – 35 work days
Certification:CE & ISO9001:2000

ISO AFCH Quick Cooling / Heating Mold Temperature Control Unit / Controller

Quick Detail:

1. Cooling water inlet/outlet diameter:1.5inch

2. Steam inlet diameter:1.5inch

3. Steam circling system diameter:1.5(3/8×12)

4. Certification:CE & ROHS

5. Control mode: Computer PLC processor+mak-machine interface touch control

6. Warranty:1 year

Description:

Eliminate the product surface soluble wiring and melted marks Increase the liquidity and fill effects of the plastic Improve the surface gloss, the surface roughness is similar to the mirror Products do not need to spray paint processing, increase the finished products rate by 20-30% Solve the fiber products floating fiber problem, make the product quality perfect

Specifications:

ITEM	UNIT	AFCH-1600CH
Power supply	V	3∮/380V/50HZ
Power	KW	3.06
Control mode		Computer PLC processor + man-machine interface touch control
Hot-cold conversion speed	S	15-50
Cooling water pump power	KW	3.0
Cooling water inlet/outlet diameter	Inch	1.5
Steam inlet diameter	Inch	1.5
Steam circling system diameter	Inch	1.5(3/8×12)
Size	mm	1375×550×1570
Weight	KG	220

Competitive Advantage:

1. Strict quality control system

2. Three factories in shenzhen, tianjin and suzhou. More than 60 offices in China.

3. Our product is environmental and energy-saving

4. We have the production certification organic heat transfer material heater

5. High density heat insulation cotton and aluminum foil

6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST

7. Imported microcomputer or PLC

8. Customization thick copper pipe 1.0-1.2

Applications:

Chemical Industry

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.

Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.
