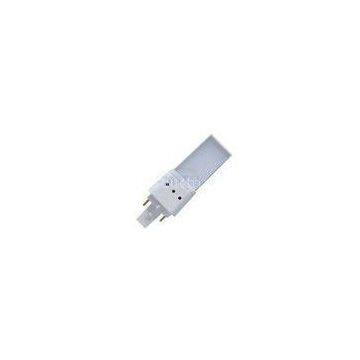

Energy Saving 3W G24 LED PL Lamp, 6pcs Samsung 5630 SMD LED G24 Light AC85-265V
Energy saving 3W G24 PL LED, 6pcs Samsung 5630 SMD LED, AC85-265V
Description:
Samsung 5630 SMD LED AC100~240V input options 3W power consumption Warm white Pure white Cool white Luminous Efficiency 80-110Lm/W Color Rendering Property(CRI): >80 G24,G23,E14,E27 base could be rotated 300º 120º beam angle Replace traditional PLC lamp directly, no need to take off the ballast. Up to 70% energy savings 3 Year Warranty CE RoHS TUV UL compliantSpecifications:
Electrical / Optical Characteristics (Ta=25℃±3℃)
|
Tech Date |
||
|
Model |
US-PL-G24-S3W |
|
|
LED Qty |
6pcs |
|
|
LED Type |
Samsung 5630 SMD LED |
|
|
LED Power |
3.0W |
|
|
LED Color |
Warm white, Pure white, Cool white |
|
|
Input Voltage |
AC100~240V; 110V/220V |
|
|
Frequency Range |
50Hz – 60Hz |
|
|
Power Factor |
>95 |
|
|
Power Efficiency |
>88% |
|
|
Luminous Efficiency |
80~110LM/W |
|
|
Dimension |
29 x 110mm |
|
|
Color Temperature |
WW |
2700-3500K |
|
PW |
4000-5500K |
|
|
CW |
6000-7000K |
|
|
CRI |
WW |
Ra>82 |
|
PW / CW |
Ra>80 |
|
|
Lumens Output |
WW |
240lm |
|
PW |
250lm |
|
|
CW |
255lm |
|
|
Beam Angle |
120° |
|
|
Base Type |
G24 / G23 / E14 / E27 Rotation |
|
|
Net Weight |
70g |
|
|
Working Temperature |
-40℃ ～ +55℃ |
|
|
Storage Temperature |
-25℃ ～ +65℃(25℃best) |
Curve of light distribution & Lux distance(Ta=25℃±3℃)
Comparison of color temperature:
Diagram of degradation for Luminous:
Comparison of Lifetime:
|
Traditional PLC lamp |
6000,hours lifetime |
Increase the |
|
|
G24 LED PLC Lamp |
50000,hours lifetime |
long time with |
G24 LED PLC Lamp dimension (unit: mm)
Package:
41*30*16cm (80pcs/box) 7.0kgs
Applications:
Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls,
supermarkets, kitchen, display, backlight, home indoor lighting and so on
