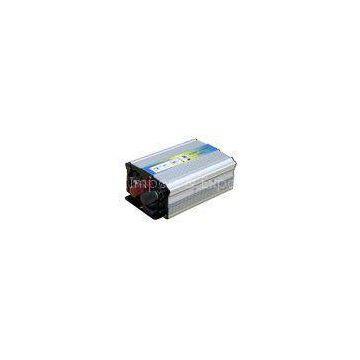

300W Smart Portable Car Battery Power Inverter DC To AC , DC 12V

Delivery Time:Within 10-15 days after received payment
Certification:CE & ROHS


300W Smart Portable Car Battery Power Inverter DC To AC , DC 12V

Quick Detail:


Material: Aluminum alloyFunction: DC to AC InvertersOutput Waveform:Modified Sine WaveContinuous power:300WEfficiency:Up to 85%Output Socket: Stock items UK or Euro 3 pin (/EU), USB



Description:


XYA300 uses high quality components and advanced circuit designed to convert the DC power to AC power at the efficiency of more than 85%.Wired into your vehicle\'s electrical system, it provides clean, consistent power to run computers, lighting or other small appliances.Automatic protection function helps user save the trouble of shutdown and restart when there is under voltage, over load, over temperature, over voltage, etc.Don’t need to worry about that the inverter will be too hot, because we have cool shell design and high speed inner fan to let the temperature down.  Besides various color, package and socket designs, customization services are also provided to meet your special need.



Applications:

Laptop, Tablet PC, Mobile phones, Cameras, lighting, electric shavers, Fan and so on.


Specifications:


Input voltage	DC 12V
Input voltage range	DC 9.5V-15.5V
Input Current	25A
Efficiency	Up to 85%
Continuous output power	300W
Surge output power	600W
Output Voltage	AC 210V-240V
Output Current	1.36A
Output Frequency	50Hz-60Hz
Type of Output Waveform	Modified Sine Wave
USB Output Voltage	DC 5V(800mA)
Operating Temperature Range	0℃ to 40℃
Cooling	Temperature Controlled Fan
Low DC Input Voltage Shutdown	10V
High DC Input Voltage Shutdown	15V
Short Circuit Shutdown	Yes (Automatic recovery)
Overload Shutdown	Yes (Automatic recovery)
Over Temperature Shutdown	Yes (Automatic recovery)
Dimensions(L×W×H)	160×100×54mm
Dimensions(L×W×H)	170×160×60mm (Color box)
Dimensions(L×W×H)	235×180×75mm (Slide card)
Net weight/Gross weight	500g/700g
Packing list	Color Box 1pcs, Instruction 1pcs, XYA300 Inverter 1pcs
Packaging Details	24pcs/box(Color Box), 20pcs/box(Slide Card), Size of Outer box: 450×330×340mm
Applications	Laptop, Tablet PC, Mobile phones, Cameras, Lighting, Electric shavers, Fan and so on

Applicable models

Audi, BMW, Volkswagen, Chery, Great Wall, Toyota, Nissan, Citroen, Peugeot, Lexus, Fiat, Mazda, Hyundai, Kia, Buick, Ford, Volvo, Cadillac, Mercedes Benz, Dodge, Jeep, Renault, Opel, Porsche, Smart, Mitsubishi, Suzuki, Proton, GAZ, Izh, Kamaz, Lada, UAZ, Lotus, Mini, Chevrolet, Renault, Saab, Skoda and so on .


Competitive Advantage:


Stable working performance: with constant output voltage, allowing 10% fluctuation.Double output: having USB charging port 5V DC, 500mA.Full load temperature below 50 degree: cool surface design and load controlled fan help lower the temperature of inverter and prolong its span.Safe and reliable: Automatic protection and alarm when there is over load, over voltage, under voltage and high temperature.Complete specifications: various color, package and socket designs, customization is available.
