Home > Products > BOE LCD Panel > 18.5" 3.5ms TN BOE LCD panel , 1366x768 RGB Vertical Stripe LCD Screen HT185WX1- 100

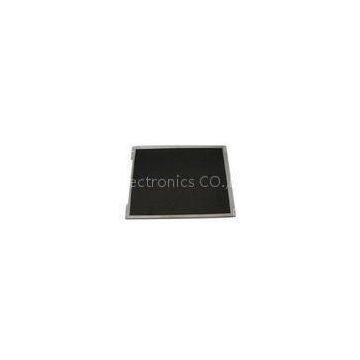

18.5" 3.5ms TN BOE LCD panel , 1366x768 RGB Vertical Stripe LCD Screen HT185WX1- 100
- T/T L/C D/P D/A
- 7 days
You May Like
-
RGB TN LVDS 18.5\" BOE LCD Panel TFT LCD Display 1366*768 CE / ROHS
-
LVDS 5.7\" tft lcd module / TianMa LCD display 320x240 TM057KDH03
-
15 inch TianMa LCD display 1024x768 TMS150XG1-10TB for tablet pc , CCFL Backlight LCD
-
CLAA057VC01 CW lcd display module 680x480 5. 7 inch TTL LCD Panel Replacement
-
Customized CPT tablet pc touch panel TFT Display Screen CLAA057VA02 CW
-
1024x600 20ms 250nits Industrial LCD Monitors CLAA101ND07 CW with RGB vertical stripe
Product Details
| Brand Name | BOE | Place of Origin | China | |
| Model Number | HT185WX1- 100 |
Product Description
Certification:CE ,ROHS
18.5\" 3.5ms TN BOE LCD panel , 1366x768 RGB Vertical Stripe LCD Screen HT185WX1- 100
Quick Detail:
1. Lcd size:18.5”
2. Resolution: 1366(H) ×768(V)
3. Brightness: 250nits
4. Weight: 2000 (max.)
5. Backlight:LED
6. Interface:LVDS
Applications:
industrial control and car application lcd panel.besides,we have different size lcd panel apply to different fileds. such as tablet pc ,health care, Digital video cameras, digital cameras, portable DVD player, visual doorbell,.
Specifications:
|
Items |
speciation |
|
Screen Diagonal(inch) |
18.5\" |
|
resolution |
1366(H) ×768(V) |
|
Active Area |
409.8(H) × 230.4(V) |
|
pixel Pitch(mm) |
0.3(H) ×0.3(V)) |
|
Pixel Arrangement |
Pixels RGB stripe arrangement |
|
contrast ratio |
1000:01:00 |
|
brightness |
250nits |
|
respond time |
3.5ms |
|
backlight |
LED |
|
Display Mode |
TN, Normally White |
|
Nominal Input Voltage VDD(volt) |
3.3 typ. |
|
Weight(gram) |
2000 (max.) |
|
Physical Size(mm) |
430.4(H) × 254.6(V) × 16.5(D) typ. |
|
Electrical Interface |
LVDS |
|
Surface Treatment |
Haze 25%, 3H |
|
Color Depth |
16.7M |
|
RoHS Compliance |
RoHS Compliance |
Competitive Advantage:
+ we are the agent of AUO/CPT/Innolux in ShenZhen China
+ Secure Ordering
+ Delivery Date Guarantee
+ 100% Low Price Guaranteed
HK SEBO Electronics Co., Ltd. was founded in 2007. Our main products are all kinds of lcd panels. As the agent of AUO/CPT/Innolux,in Shenzhen, China, we have supplied our lcd panels to many lcd monitor, lcd TV, notebook pc, digital photo frame, DVD player, industrial display and car display factories from at home and abroad
With the advantage of our lcd panels, we have been engaged in the R&D of led backlight for lcd panel since the year of 2010 to satisfy customer;s different demand of lcd panel\'s brightness.
