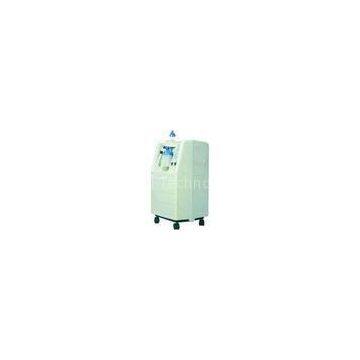

Portable Medical Oxygen Concentrator with Double and Single Outlets 4L / 2.7L for clinics

Portable Medical Oxygen Concentrator with Double and Single Outlets 4L / 2.7L for clinics Introduction Your physician has determined that supplemental oxygen is of benefit to you and has prescribed the oxygen concentrator to be used with a specific flow setting to meet your particular needs. Changes to the flow settings can and should only be made under the advice of your physician. The oxygen concentrator is a device that separates oxygen from room air. The air we breathe is a mixture of approximately 21% oxygen and 78% nitrogen and 1% trace gases. A concentrator separates the nitrogen from room air allowing the oxygen to pass though a nasal cannula or musk to the user. Your oxygen concentrator dealer will show you how to operate the concentrator and will be available to answer any questions about the concentrator. They should be contacted if you have any further questions or problems. This User’s Manual should be used as a reference to help you with the operation and maintenance of the oxygen concentrator. The oxygen concentrators have been passed the EMC test. Technology Introduction 1． Technology Principle (1) Oxygen Concentration Principle The Medical Healthy Oxygen concentrator adopts advanced physical adsorption theory — Pressure Swing Adsorption principle to separate the oxygen from air at normal room temperature and atmospheric pressure. The concentrator can supply pure and high consistence medical oxygen just only by turning on the power switch. (Please refer to the principle diagrams on the back cover.) (2)Nebulization Principle (NOT APPLLIED FOR 3) The Oxygen concentrator Adopts advanced nebulization technology to turn liquid medicine into numerous tiny globelets and drops which seep into the respiratory system to achieve good curative effect for respiratory disease. Notice: The liquid medicine mentioned above should be suggested by your physician or other qualified doctors. 2. Application scope (1) For Medical Use Medical oxygen supplied by the concentrator is beneficial to cure the disease or heart and blood vessel system, chronic pulmonary system, the brain and blood vessel system, chronic pulmonary tuberculosis, and other oxygen lacking symptoms, etc. Especially suit for those places where offering oxygen is difficult, such as those outlying cities and towns, islands, rural area, and etc. Of course the concentrator can also be used in hospitals, clinics and family for assistant treatment. Specifications: Rated Oxygen Flowrate (L/min) 0 kPa 4 7 kPa 2.7 Oxygen content >90% (v/v) Noise [dB(A)] ≤50 Outlet Pressure (MPa) 0.04~0.06 Input Power (VA) 400 Electrical Requirement AC 230V, 50Hz Net Weight (kG) 25 Nebulization Rate (ml/min) ≥0.2 Oxygen temperature Ambient temperature Normal working condition Temperature: 5~40 Relative Humidity: ≤80% Atmosphere Pressure: 86~106kPa Dimension L*W*H 380*310*600 Filter maintenance FOR 3, 3W, 4W: FUNCTION INTRODUCTION Detailed sub-series of 5W Optional Function Outlets Nebulization Drainage Timer Oxygen content indicator 5W (The model you ordered is marked with symbol “△” before the sub-series No.) (1) Double Y Y Y Y (2) Double Y N Y Y (3) Double Y Y N Y (4) Double Y Y Y N (5) Double Y Y N N (6) Double Y N N Y (7) Double Y N Y N (8) Double Y N N N (9) Double N Y Y Y (10) Double N N Y Y (11) Double N Y N Y (12) Double N Y Y N (13) Double N Y N N (14) Double N N N Y (15) Double N N Y N (16) Double N N N N (17) Single Y Y Y Y (18) Single Y N Y Y (19) Single Y Y N Y (20) Single Y Y Y N (21) Single Y Y N N
