Home > Products > TVS Diode Array > 1.5KE12A TVS DIODE 10.2VWM 16.7VC AXIAL , Surface Mount General Purpose Diode

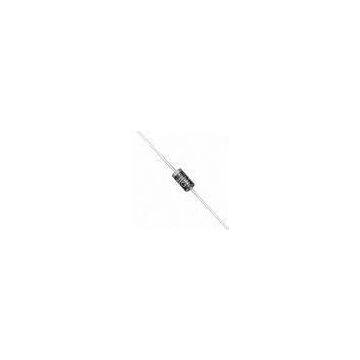

1.5KE12A TVS DIODE 10.2VWM 16.7VC AXIAL , Surface Mount General Purpose Diode
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
DIODE FAST SW 50V 1A DO204AL / Standard Diode 1N4933GP - E3 / 73
-
VISHAY 1N4934GP - E3 / 54 Fast Recovery Diode SW 100V 1A DO204AL , Tape / Reel Packaging
-
Axial 200V 1A DO41 Fast Recovery Standard Diode 1N4935GP DO - 41
-
1N4935RLG With DO - 41 , Axial , DIODE FAST REC REC 200V 1A DO41 / Standard Diode
-
1N4936GP Standard Fast Recovery Diode 400V 1A DO204AL , DO - 204AL DO - 41
-
Through Hole Single Fast Recovery Diode Avalanche 1.2V , 1N4937GP DO214AC
Product Details
| Brand Name | Littelfuse Inc | Place of Origin | China | |
| Model Number | 1.5KE12A |
Product Description
Certification:ROHS Compliant
1.5KE12A TVS DIODE 10.2VWM 16.7VC AXIAL , Surface Mount General Purpose Diode
Quick Detail:
1.5KE12ALFCT-ND
Description : TVS DIODE 10.2VWM 16.7VC AXIAL
Package:DO-201AA, DO-27, Axial
D/C:2014+
Price:
ROHS: Yes:
Lead time: STOCK
Description
E-Chips Solution Co., LTD is a full-service, professional distributor of semiconductors, integrated circuits, electro-mechanical, computer peripherals, military and hard-to-find, obsolete and allocated products, servicing large-scale OEMs worldwide.
Applications:
All of the circuit board
Specifications:
| Datasheets | 1.5KE Series |
|---|---|
| Product Photos | LCE Series |
| Product Training Modules | Transient Voltage Suppression (TVS) Diodes |
| Catalog Drawings | 1.5KE Series Axial Side |
| Standard Package | |
| Category | Circuit Protection |
| Family | TVS - Diodes |
| Series | 1.5KE |
| Packaging | Tape & Reel (TR) |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 10.2V |
| Voltage - Breakdown (Min) | 11.4V |
| Voltage - Clamping (Max) @ Ipp | 16.7V |
| Current - Peak Pulse (10/1000µs) | 91A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Dynamic Catalog | 1.5KE Series |
| Other Names |
1.5KE12A-ND 1.5KE12ALF 1.5KE12ALF-ND 1.5KE12ALFTR 1.5KE12AT |
1. We can shipping all over the world by DHL , UPS , FedEx ,TNT, EMS and HK post. The packaging is very safe and strong. If you have any special needs please notice me.
Competitive Advantage:
2. It will take around 3-5 days to reach your hands.
3.Good price with good quality!
100% NEW AND ORIGINAL!
30-365 DAYS QUALITY WARRANTY!
