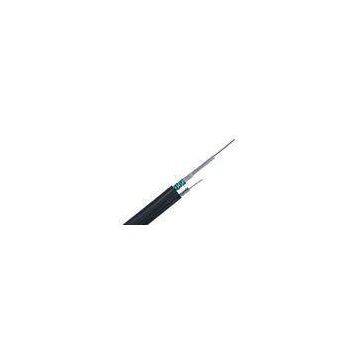

12 Cores Singlemode Outdoor Fiber Optic Cable Figure 8 Self Supporting Cable GYXTC8S

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	ODM Or SINDA OEM		Place of Origin	China
Model Number	GYXTC8S

Product Description

Delivery Time:Normally 10~15 days
Certification:ISO, ROHS

Long distance 8 Cores Singlemode Figure 8 self supporting cable GYXTC8S

8 Cores Singlemode Figure 8 Self-supporting Cable GYXTC8S

Quick Detail:

Model: GYXTC8S

Fiber Cores: 2~12 cores

Fiber Type: 9/125um, 50/125um, 62.5/125um

Jacket Material: PE ,LSZH

Place of Origin: Guangdong China

Standards: YD/T 901-2001 as well as IEC 60794-1

Description:

Stainless steel or gaivanized steel self-supporting.

Excellet mechanical and environmental performance

Applications:

Long distance and local area network communication

Adopted to Outdoor distribution.

Suitable for aerial .pipeline laying method.

Specifications :

Cable Count	Out sheath Diameter	Weight	Minimum allowable Tensile Strength (N)	minimum allowable Crush Load (N/100mm)	Minimum Bending Radius (MM)	Storage temperature
(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
4	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
6	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
8	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60
12	3.8×5.5	52.00	1500	200	1200	200	20D	10D	-40+60

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
A1b:62.5/125
Singlemode	G.652(A,B,C)	B1.1:Conventional fiber
G.652D	B2: Zero dispersion shifted
G.655	B1.2 :Cut-off wavelength shifted
G.657(A1,A2 ,B3)	B4: Main technical data for positive dispersion shifted single-mode fiber

Competitive advantages:

Our products conform to standard of posts and telecommunications, as well as international IEC,BELLCORE standard , which are widely used on telecommunications, posts ,Electrical and Aviation. For those who has special requirement, we can also customerize t
