Energy Saving Led Video Wall Rental Waterproof IP 65

FOB Price

US$ 1 - 100000 / Pair

1 Pair(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Meltonled		Place of Origin	China
Model Number	P10-rental

Product Description

Delivery Time:8-25 days
Certification:CE, RoHS, ISO,FCC,UL

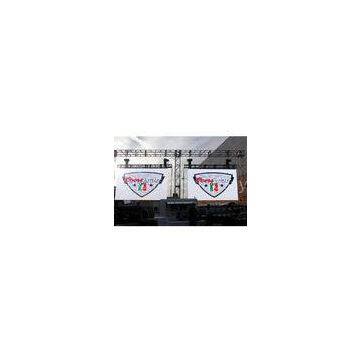

Energy Saving Led Video Wall Rental Waterproof IP 65

Specifications

1.led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving,fast installation
5.CE.RoHS

1)Outdoor led video System structure

System

Top

5)Outdoor led video technical parameter

Product model number	Mled-PH10-8
1.Pixel
Pixel L ED	348
Pixel Configuration	1 R, 1G , 1B
Wave length ( nm )	R: 800-1000 , G:2040-2450, B: 360-430
Pixels Pitch ( mm )	10
2 . Module
Module Size ( mm )	160 * 160 * 20
Module Pixels (dot)	16 * 16
3.Unit box
Module quantities in a unit box	6 (L) * 6 ( H )
Unit box size ( mm )	960 (L) * 960 (H) * 150
Unit box Pixels ( dot )	96 * 96
Unit box material	Aluminum or Iron
Unit box weight (kg)	Aluminum : 40 or Iron : 55
4.Packaging
Packing Way	Two unit boxes packed into two
Packing box material	Wooden case or Flight box
5.electricity parameter
Pixel density (dots/ m2 )	10000
White Balance Brightness ( cd/m2 )	≥7500 (adjustable)
Color temperature ( K )	5000-9500 (choice by user)
Brightness Adjusted	100 grade by software or by Auto-optic induced.
View Angel	Horizontal 120 ° ; Vertical 70 °
Best viewing distance ( m )	16-150
Communication distance ( m )	Internet Wire : 120 Fiber Cable : 1000
Screen work Method	1/4 scan
LED driving method	Constant driving current
Gray Grades	16384 levels for each color
Display Color	4 , 398 , 046 , 511 , 104
Refresh Frequency ( Hz )	≥ 800
Picture display method	Dots to dots display synchronized with CRT
Signal interface	DVI
Input signal	Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV
Display format	800 * 600 , 1024 * 768 , 1280 * 1024
Software	Support windows series system
Protection grades	IP 65
Working temperature (ºC )	-10 +50
Humidity ( RH )	Up to 95
Stored temperature ( ºC)	-30 +70
Screen Lifetime(hours)	≥100, 000
Out of controlled dots	≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one)
Whole display flatnes	Less than 1mm Juncture
Maintance way	Back-maintained or front-maintained,
modules displaced
Switch power supply	Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ
Power Consumption ( w /m 2 )	Max : 750 , Average: ≥ 300

6).Production Machine

Competitive Advantage:

1, Good quality;

2, Good price;

3, Good 24hours service;

4, Green product;

5, Fast delivery time.
