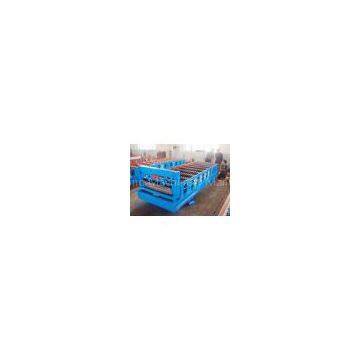

Automatic Corrugated Roofing Sheet Roll Forming Machine 9-12m/min Drive By Chain
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
- Radio Shuttle Racking With Pallet
- Drive in Rack Warehouse Storage
- Light Duty Warehouse Storage Rack Shelf Garage Shelves
- Pallet warehouse pallet forklift pallet
- American Type Industrial Warehouse Storage Heavy Duty Teardrop Pallet Racking
- 1200X1000 mm Powder Coating Storage Logistic Metal Steel Pallet for Transportation
Product Details
Brand Name: | HuaTong | Place of Origin: | China | Model Number: | 19-77-1001 |
Product Description
Certification:ISO9001:2008
Automatic Corrugated Roofing Sheet Roll Forming Machine 9-12m/min Drive By Chain
Quick Detail
Name | color steel corrugated roll forming machine | Application | roof |
Color | any | Warranty | 1 year |
Line speed | 9-12m/min | Certification | ISO9001:2008 |
Drawing panel for the corugated roll forming machine
flow chart for corrugated roll forming machine
speicification
(1) Material of frame: 250mm H shape steel welding
(2)Thinckness of middle plate:12mm
(3) Step of forming roller : 16steps
(4) Diameter of shaft (solid shaft): 74mm
(5) Material of shaft (solid shaft): (high grade) 45# Steel, quenched and tempered treatment,hard chromize coated 0.05- 0.07mm on the surface of the roller.
(6) Drive type of roll forming machine : drive by chain
(7) Chain : 25.4 mm (high grade)
(8) Bearing : 6210 (high grade)
(9) Reducer : 5# cycloid reducer (high grade)
(10) Power of main motor : 3KW
(11) Voltage : 380V/50Hz/3phase
(12) Line speed : about 9 -12m/min
(13) Feeding width : 1000mm
(14) Suitable coil thickness : accepted thickness for steel coil is 0.35mm-0.8mm.
(15) Motor power of hydraulic station : 3kw
(16) Oil pump of hydraulic station : gear oil pump (high grade)
(17) Hydraulic cutting: cutting controlled by PLC
(18) Accuracy of cutting : 2mm
(19) Razor blades material : Cr12, quenching 58-62 °.
(20) Appearance size of main forming machine : 4.1m (length)*1.3m (width) *1.3m (height)
(21) Weight of main forming machine : about 4.0T
(22) Electrically controlled system : entire machine controlled by PLC
(23) PLC : DELTA(TAIWAN)
(24) Frequency converter : DELTA(TAIWAN)
(25) Frequency converter power : 3.7KW
(26) Encoder : RUI PU(high grade)
(27) Controlling desktop : text panel screen (high grade)
(28) Electrical parts : DELIXI or CHINT
Machine componets:
(1) Manual un-coiler 1 set
(2) Feeding device 1 set
(3) Roll-forming M/C 1 set
(4) Hydraulic cutter 1set
(5) PLC control system 1 set
(6) Hydraulic station 1 set
(7) Product rack (un-powered) 1 set
Note:
1. Our machine can use galvanized steel sheet, colored armor plate or aluminum plate as the material plate.
2. Controlling by computer, PL display, operations easy, running is steady and reliable ,endurable, maintenance-free.
3 .We can make and design what kinds of roll forming machine according to the request of customers.
Applications:
It use for industrial workshop, residential house, warehouse, simple steel shed etc.
Why to choose our roll forming machine?
We know there are many companies you can choose, and maybe you think our price is higher than others, so I will introduce the different between our products and others. And how to choose the good machine. And why ours is higher.
1 Our shaft is solid, low price is hollow ,the use steel pipe instead of shaft. The shaft is one of the most important about the machine, we know it main press the plate, if the shaft is low quality, it can’t bear the pressure ,so it’s easy to broke. So this is one about our high price, we ensure the quality.
Our shaft is 45# steel, quenching and tempering treatment, low price is ordinary steel and no quenching and tempering treatment, and our roller is bigger than low price machine, and the treatment of roller surface is hard chromize coated 0.05-0.07mm, low price is 0.01-0.03mm even they paint silver powder instead of chromize coated.
2 Our offer is for the whole roll forming machine line
3 Our machine line is full-automatic
4 Diameter of shaft : our is 74mm, low price is 50-60mm.
5 Size of roller : our is bigger than low price machine
6 Size of chain : our is 25.4 mm (high grade and “DONGHUA BRAND”famous brand of China), low price is 19.05mm(not high grade and famous brand of China).
7 Bearing : 6210 (hig
