UEFA 2012 P16 Outdoor Football LED Perimeter Advertising Billboard High Resolution

Hongkong Soundboss Industrial Co

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

S&B

Place of Origin:

China

Model Number:

SBO-P16

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name S&B

Place of Origin China

Model Number SBO-P16

Delivery Time:10~20 days
Certification:CE,RoHS，CCC

UEFA 2012 P16 outdoor football LED perimeter advertising billboard high resolution

2011 Asian cup LED supplier

1. CE&RoHS certificate

2. 36 months warranty and Life long free tech-support

3.Excellent contrast ratio, high resolution/high definition

4.Perect uniformity and no mosaic

5. Waterproof IP65

6. Light weight and easy to install

7. Available models: P10, 12, 16, 20, 25, 31.25, ect.

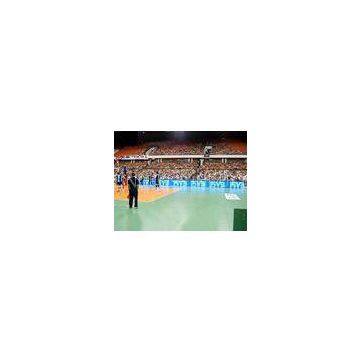

Application: It is widely used all kinds of Stadium.

Advantage:

1. High Contrast ratio: 4000:1

2. First-class LED chip

3. Clear vivid image quality

4. Long life time

5. Easy Installation & Operation

6. Convenient Servicing

SBO-P16 (Pitch 16mm outdoor full color)
Colour temperature	5000~9000 k
Pixel structure	φ5 oval lamp, 1R1G1B
Pixel pitch	16mm
Pixel density	3, 906 dots/㎡
Luminance	6, 500cd/㎡
Module dimension	256mm(W) * 128mm(H)
Module resolution	16 pixel(W) * 8 pixel mm(H)
Cabinet dimension	1024 * 768mm
Cabinet resolution	64 * 48
Cabinet area	0.786 sq. meter
Optimal visual distance	>15m
Visual angel	110 / 50 degree (H/V)
Max power consumption	≤1000w / ㎡
Average power consumption	≤600w / ㎡
Brightness adjustment	Adjust according to the environment
brightness software (0%-100%adjustable)
Gray scale	point by point 4096 gray grade levels of
each color, 16 bits γ correction available
Drive mode	Static, constant current
Frame frequency	≥60HZ
Refresh frequency	≥1000HZ
Input voltage	AC 90~260 volts
Operation temperature	﹣40℃~ +65℃
Operation humidity	10％～90％
Input signal	S-video, RF, RGB, Yuv, YC, composite…
Control system	DVI card + master control card + receiver card
MTBF	>5000 hrs
Life span (50% brightness)	100, 000 hrs
Malfunction dot rate	1/10000
Ingress protection rate (Front/ rear)	IP65 / IP54
Cabinet material	Epoxy paint coated, aluminum / iron
Application:	Rental / Permanent installation available
