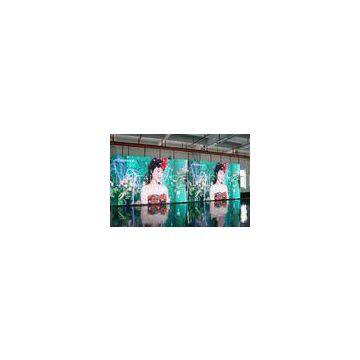

China SMD3535 P8 Outdoor SMD Led Display Screen For Rental Event
2011 Asian cup LED supplier
1. 36 months warranty. And life long free tech-support
2. CE and RoHS approval
3. Front accessible maintenance
4.Excellent contrast ratio, high definitio
5. High brightness and perfect uniformity
6.Waterproof IP65
7. Available models: P8, P10, P12, P16, P20 ect.
Application:
Our products have been widely used in venues such as banks, stock exchange centers, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares, courts, schools, restaurants etc;
Advantage:
1. High Contrast ratio: 4000:1
This is a very high level to ensure a vivid image of our LED display screen system.
3. First-class LED chip:
Supplied by high strictly selected SMD3535 LED
4. Clear vivid image quality:
Perfect color blending and comfortable visual effect
5. Easy Installation & operation:
Slim and light LED panel, user friendly software for an easy interface to operate the LED system
6. Easy maintenance:
Front and rear cabinet access maintenance
|
SBO-P8SMD (Pitch 8mm outdoor full color) |
|
|
Pixel structure |
1R1G1B, 3in1 |
|
Pixel pitch |
8mm |
|
Pixel density |
15, 625 dots/㎡ |
|
Luminance |
6, 500cd/㎡ |
|
Module dimension |
256mm(W) * 128mm(H) |
|
Module resolution |
32 pixel(W) * 16 pixel mm(H) |
|
Cabinet dimension |
768 * 640mm |
|
Cabinet resolution |
96 * 80 |
|
Cabinet area |
0.492 sq. meter |
|
Optimal visual distance |
>6m |
|
Visual angel |
140 / 140 degree (H/V) |
|
Max power consumption |
≤1100w / ㎡ |
|
Average power consumption |
≤600w / ㎡ |
|
Brightness adjustment |
Adjust according to the environment |
|
brightness software (0%-100%adjustable) |
|
|
Gray scale |
point by point 4096 gray grade levels of |
|
each color, 16 bits γ correction available |
|
|
Drive mode |
Static, constant current |
|
Frame frequency |
≥60HZ |
|
Refresh frequency |
≥1000HZ |
|
Input voltage |
AC 90~260 volts |
|
Operation temperature |
﹣40℃~ +65℃ |
|
Operation humidity |
10％～90％ |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite… |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
>5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
|
Cabinet material |
Epoxy |
