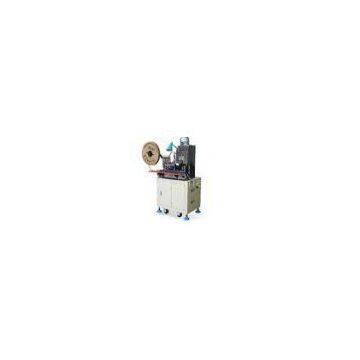

High Speed Automatic Wire Crimping Machine for Cable Stripping Crimping
Patent No: ZL201010531665.7
Applicable Cable: SPT-1, SPT-2, NISPT-1, NISPT-2, VFF, HVFF, VCTFK, H03VVH2-F, H05WH2-F,RVV( it can\'t be commonly used for single and double insulation cables )
Description: Wire stripping and pressure connection are completed once for all. Equipped with automatic oi
l feed unit, 3-5labors are saved completed with original operating mode, with advantage of reducing
accidents, saving labor, improving output and being safe and envionmentally friendly.
Specifications
| Stripping & Punching/Crimping Speed | 2300~2400pcs/hour |
| Punching force | 3T |
| Voltage | AC220V/50HZ |
| Wire Stripping Length | 20mm |
| Dimension | 970mm*550mm*1470mm |
| Weight | 280Kg |
II. Operation
A. Preparation before Operation
Add corresponding lubricating oil to each position
Check whether the screws on the upper/lower riveting blades (for the crimping portion) are locked securely
Check whether the air pressure is higher than 4.5KG/cm²
Check whether the pushing terminal is at correct position
Check whether the material debris is cleared away thoroughly
After startup of the machine, depress the pedal switch to check for abnormal sound in the machine
B. Operating Method
Importing of the terminal: First take the front end of the terminal out of the terminal rack and insert it into the guiding board until the bottom terminal-guiding plate is reached. Then place the terminal horizontally on the lower riveting blade
Placing of electric wires: Put the electric wires into the trunking on the crawler belt and make the front end of wires contact with the wire baffle surface. Then depress the pedal switch to make the wires attach to the crawler belt and move from left to right for further treatment until it is riveted with the terminal;
Adjustment of wire front end position: Adjust the wire baffle ,back and forth until it reaches the position necessary for wire length. Then lock the screws securely on the wire baffle;
Fine adjustment of the stripping depth of the stripping blade: Loosen the nuts ,and adjust the screws. The blade can be adjusted by turning the screws clockwise to reduce the depth or anticlockwise to increase the depth. After adjustment, lock the nuts;
Adjustment of wire stripping distance: Loosen the nuts, and adjust the screws . The distance can be adjusted by turning the screws clockwise to reduce the distance or anticlockwise to increase the distance. After adjustment, lock the screws;
Adjustment of wire clamping block: Loosen screws . on the wire clamping block, lift the block , put the wires into the wire trunking and then clamp the electric wires with the block in a manner preferably not to damage the wires. After adjustment, lock the screws securely to fix the block;
Adjustment of riveting height: Loosen the screws , and adjust the column . The riveting height can be adjusted by turning the column clockwise to reduce the riveting height or anticlockwise to increase the height. After adjustment, lock the screws securely;
Adjustment of feeding claw position: Loosen screws on the feeding rack , and properly turn the rack .until the tip of feeding claw piece,extends right into the circular hole of the terminal belt. After adjustment to the correct position, lock the screws securely on the rack;
