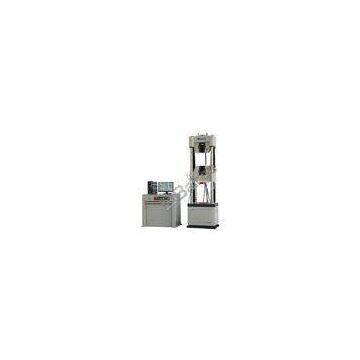

HUT-600C Hydraulic Servo Universal Testing Machines, Precise Universal Testing Equipment
Specially designed extended grip jaws are equipped for pre-loading tension on concrete stranded steel wire. Apply appropriate grips to perform tension on metal bar, plate and threaded iron. Meanwhile, applicable grips provide capability of tension and compression on metals or concrete. This series is also capable of both static tensile, compression tests and quasi-dynamic tests including low-cycle fatigue tests. The HUT-600C series of microchip controlled Electro-hydraulic servo universal testing machines (stranded steel wire) is mainly designed for tension, compression, bend, shear on metal, and non-metal materials. This product series features a bottom-mounted hydraulic cylinder; electrically adjusted test space, hydraulically powered automatic grip, adjustable four-column main frame. It is competent to fulfill the requirements of application fields such as road, bridge construction, construction materials, quality control department, science and research department, iron forging, higher education, etc. This product features a firm structure as well as steady loads, precise controls and is intuitive to operate. It adopts the leading high-performance AEC-1200 Controller, which is usually equipped on high-end material testing machines. The mechanical components collaborate with the pioneered modular TestLive computer testing software to ensure the stability, precision and reliability of the whole system. The hydraulic system is able to withdraw at a speed as fast as 0.8m/min with the help of a speed withdraw unit to promote testing efficiency. This product complies with the standards and requirements of GB/T 228-2002, GB/T 7314-2005 etc.Technical Specifications:
|
Model |
HUT-600C |
|---|
Capacity
600kN
Load measurement range
1%～100%
Load measurement accuracy
±0.5% / ±1%
Load resolution
±1/500000 of Max capacity, no stepping, no change in full scale
Extensometer
Standard 25mm, 50mm, Optional 100mm, extension scale up to 50%
Special steel strand extensometer
Standard 500mm, extension scale up to 5%
Deformation measurement range
1%～100%F.S.
Deformation measurement accuracy
±0.5%
Deformation resolution
±1/500000 of Max capacity, no stepping, no change in full scale
Crosshead displacement measurement accuracy
±0.5%
Crosshead speed adjustment Range
0.1～120mm/min
Crosshead speed accuracy
±0.5% / ±1%
Deformation speed adjustment range
0.005%～2.5%F.S./s
Deformation speed accuracy
±0.5%/±1%
Loading speed adjustment Range
0.01%～3%F.S./s
Loading speed accuracy
±1%(speed<0.1%F.S./s), ±0.5%(speed≥0.1%F.S./s)
Piston travel
250mm
Grip distance
1250mm
Compression space
850mm
Power supply
4kW/AC380V/50Hz
Main frame dimensions (piston travel included)
940×650×2920mm3
Hydraulic power unit dimensions
1040×720×975mm3
Features:
Extended grip jaw that provides r
