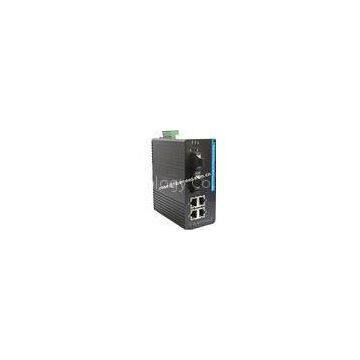

Gigabit Industrial Fiber Media Converter F / H duplex, 4 RJ45 To 2 Fiber Port

Gigabit Industrial Fiber Media Converter F / H duplex, 4 RJ45 To 2 Fiber Port

Introduction

FR-G2F4T-XX is a  speediness  10/100/1000Base-TX  Industrial  Ethernet  Media  Converter,  easy  to  connect  server,

repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast.

FR-G2F4T-XX series supports 4 TP ports and 2 fiber ports. TP(RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDIX connection; 1000BaseFX supports single/multimode, SC/ST/FC/LC connector, optional .

FR-G2F4T-XX adopt industry standard design, IP40 protection, power supply input(12V～36VDC), -40 to 80°C

working temperature.

Key Features

Ø IEEE802.3/802.3u/802.3x,store and forward

Ø Plug-and-play, easy to installation

Ø 10/100M, F/H duplex, MDI/MDI-X auto negotiation

Ø -40℃ to 75℃ operating temperature range

Ø Designed for industrial applications. IP40 protection

Specification

Ø Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX

Ø RJ45 port rate: 10/100/1000BaseT(X) auto connection, Full /Half duplex or force work mode, and support MDI/MDI-X connection

Ø Fiber Ports: 1000BaseFX ports (SC/ST/FC/LC connector, optional)

Ø Single-mode: 20, 40,60, 80,100,120Km,optional

Ø Multi-mode: 550M

Ø Wavelength: 850nm, 1310 nm, 1550nm

Power Input options

Ø Input Voltage: 24VDC(9~36V DC)

Ø Opposite connection protection

Environmental Limits

Ø Operating Temperature: -40 ℃to +80°℃

Ø Storage Temperature: -40℃ to +85℃
Ambient Relative Humidity: 5% to 95% (non-condensing)

Mechanical Dimension

Ø Dimensions: 60.5 x 118 x 140mm

Ø Casing: IP40 protection, Aluminium Alloy

Ø Instanation: DIN-Rail or wall mounting

Ø Weight: 650g

Approvals

Ø EMI: FCC Part 15, CISPR (EN55022) class A

Ø EMS:

ü EN61000-4-2 (ESD),Level 3

ü EN61000-4-3 (RS),Level 3

ü EN61000-4-4 (EFT),Level 3

ü EN61000-4-5 (Surge),Level 3

ü EN61000-4-6 (CS),Level 3

ü EN61000-4-8,Level 3

Ø Shock: IEC 60068-2-27 PASS

Ø Free Fall: IEC 60068-2-32 PASS

Ø Vibration: IEC 60068-2-6 PASS

Warranty

Ø 5 years
