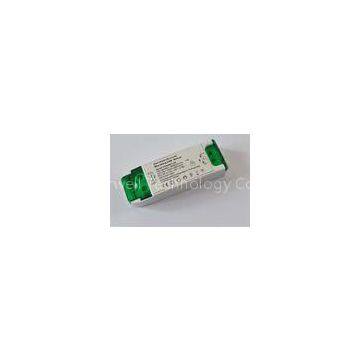

45W 500Ma / 600Ma PWM 0 - 10V Dimmable Led Driver 230V High Voltage

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	PE45AA

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

45W 500Ma / 600Ma PWM 0 - 10V Dimmable Led Driver 230V High Voltage

Short Features :

> Type : 0~10V dimmable led driver / 0 ~ 10V dimmable led driver / PWM dimmable led driver

> Output type : constant current

> input voltage range : 90~140VAC / 170~250Vac

> output : 45W 500Ma ~ 1050Ma

> Effiency : >85%

> PF : >0.95

> Ripple and Noise : 100mV maximum

> Certificate : CE , ROHS , SAA , C-tick , UL , GS , FCC , CB certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

> Application : power supply of led panel , led down light , led street light , led tube , etc......

> Net Weight : 250g

> Dimension : 183(H)*50(W)*32(H)mm

Specifications

Input Rated Voltage :	90~140VAC / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	85%(MIN)at Rated Voltage
Output:	45W 500Ma / 600Ma / 700Ma / 900Ma / 1050Ma
Output power :	45W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	0-10V/PWM dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….

MODEL LIST:
