Waterproof 700Ma Triac Dimmable Led Driver CE ROHS For 7W Led Light

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	STARWELL		Place of Origin	China
Model Number	PE291B0670

Product Description

Delivery Time:10-15 days
Certification:UL,CE,ROHS, FCC,GS,SAA,C-TICK

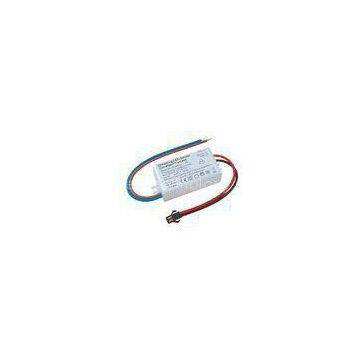

Waterproof 700Ma Triac Dimmable Led Driver CE ROHS For 7W Led Light

Short Features :

> input voltage range : 90~140VAC / 170~250Vac

> output : 3V ~ 8V DC 700mA

> Effiency : 90% minimum

> PF : >0.92

> Ripple and Noise : 100mV maximum

> IP rate : IP64

> Output type : constant current

> Net Weight : 150g

> Dimensiont : 110(H)*16(W)*10(H)mm

> Certificate : UL,CE,FCC,GS, SAA,C-TICK,CB,KC certificates.

> Safety protection : over load, over voltage, short ciruict, open load protection.

Specifications

Input Rated Voltage :	90~140VAC / 170~250Vac
Input Frequency Range:	47Hz~63Hz
Input Inrush Current :	1.8A max
Efficiency :	90%(MIN)at Rated Voltage
Output:	8~8VDC 700mA
Output power :	7W
Ripple and Noise :	<150Mv at full road with 20MHz bandwidth
Turn On Delay Time:	<3S (AC:110V and full load)
Safety protection :	over voltage and current protection.
Leakage Current:	<5mA
Output typer:	Constant current
Isolation rate:	isolation
Diming function:	Triac dimming funciton
Certificate:	CE GS TUV UL/CUL FCC ROHS,SAA,PSE,C-TICK
Safety Standard :	EN 55015:2006; EN 61547:1995+A1:2000 ;EN 61000-3-2:2006; EN61000-3-2:1995+A2:2005; EN 61347-1:2008 EN 61347-2-13:2006
Application:	For led light, led strip, led down light, led tube etc….

MODEL LIST:

Model	Input Voltage	Output Power	Output Voltage	Output Current	Power Factor	Dimension
PE291B0730	200-240V AC	3-7*1W	12-24V DC	0-300mA	0.95	523020mm
PE291A0730	90-140V AC
PE291B0670	200-240V AC	1-2*3W	3-8V DC	0-700mA	0.95	523020mm
PE291A0670	90-140V AC
PE291B0750	200-240V AC	3-4*2W	9-15V DC	0-500mA	0.95	523020mm
PE291A0750	90-140V AC

Applications:

For led light, led strip, led down light,led tube etc….

INSTRUCTION:

- For indoor application, can meet IP65 waterproof rate.

- The mains plug is used as the disconnect device, the disconnect device shall be readily operable.

- The socket-outlet shall be installed near the equipment and shall be easily accessible.

- No naked flame source, such as lighted candles, should be placed on the apparatus.

- Maximum operating ambient for the equipment is 40℃.

- The apparatus should not be used in a confined space such as a bookcase.

- This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental cap
