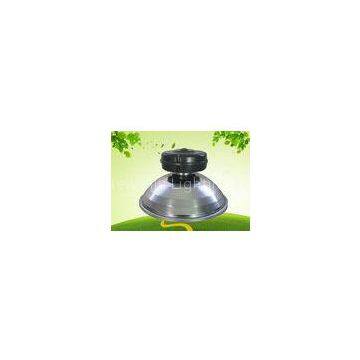

Warehouses Induction High Bay Light 80lm / W Round Eco Friendly With UL

Delivery Time:Within 15 working days , depend on QTY
Certification:CE,ROHS,SAA, C-TICK, PSE, UL

Warehouses Induction High Bay Light 80lm / W Round Eco friendly With UL

Quick Detail:

Item Type: Induction high bay light     Lighting Source: Induction Lamp Round Series

Input Voltage(V):90-305V                   Lamp Power(W): 40W-250W

Lamp Luminous Efficiency: 75-80lm/W      CRI:Ra>80

Color Temperature(CCT): 2700-6500K      Working Temperature(℃):-35 - 50

Working Lifetime (Hrs): 100000 hours        IP Grade: IP54/IP65

Lamp Body Material: Die-casting aluminum gear box , aluminum reflector , Toughed glass.

Start way : Quick instant on /of           High Power Factor: >0.98

Place of Origin: Changzhou , China   Certifications: CE, ROHS , C-TICK , SAA ,PSE ,UL

Brand Name: NSL                    Model Number: NSL-GC002

Description

Housing: Die-casting aluminum electrical box, electrostatic spray surface treatment,  high quality powder coat finish,good for heat elimination. Reflector: High Purity Mirror aluminum reflector ensures high-output luminous flux ,  beautiful and durable. Cover: High-intensity, high temperature resistant cambered tempered glass. Good transparency,  high security. Wattage Range: Big range voltage from 90V to 305V available. Color:  The PIX above is standard color, others can be customized.  Lamp Source: NSL-DP series Round type low frequency induction lamp source,with 40-250 Wattage,   90-305 input voltage,2700-6500K available, 100000 hours lifespan .  High purity rare earth fluorescent phosphor with high luminous efficiency and low light degradation.   Light Tube thickness is more than 0.8MM. Magnetic ring is high temperature resistance    with high inductance, Long lifespan.  Electronic Ballast : Rational distribution of each components,imported high quality capacitor, IC chips, MOS tube. Three EMC filters against interfering signal.

                                 Fixture Dimension                                          Photometric Curve

Applications:

1. Industrial factory, warehouses, stadium, hypermarkets and other indoor environments. Especially suitable for high spatial lighting. With high efficiency, maintenance-free characteristics, suitable for inconvenient places.

2. Soft light, no glare, high illumination, can enhance work efficiency, not easy to cause fatigue, more suitable for sports training and other operations, good for athletes to capture the target.

3. Full spectrum lighting, suitable for plant growth. Adjustable lamp base, up to 30mm, for customized beam spreads suitable for different applications.

4. Use 40/80/100/120/150/200W/250W round tubular induction with high lighting efficiency (70-85Lm/W) and lumen maintenance at 70% at 60,000 hours and rated life of 100,000 hours at 65%, about 12 years on burning 8000 hours per year.

5. Electronic ballast features high powder factor(>0.98), flickering free, and constant output wattage, safety protection and meets non-consumer requirements with low and extremely low MI designs.

6. Suitable install height: 5-12M

Specifications:

High Bay Induction Lamp Fixture

Brand Name	NSL	Fixture Code	NSL-GC002
Wattage:	40W-250W	Fixture Dimension(mm)	550*550*360mm/pcs
Install Height	5-12M	Lifespan	100000hours
Voltage:	90V~305V	Protection level:	IP54/IP65
Power factor:	>0.98	CRI:	Ra> 80
Color Tem:	2700~6500K	Packing Dimension(mm)	570*570*390mm/pcs
Application:	factory, warehouses, stadium, hypermarkets and other indoor environments.

Competitive Advantage:

(1) Long performance life: Life up to 60,000-100,000 hours.
