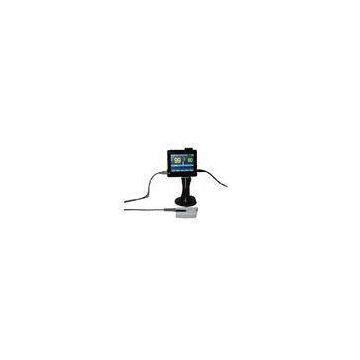

Handheld Portable Patient Monitor , 3.5 Inch Color TFT Display

Handheld Portable Patient Monitor , 3.5 Inch Color TFT Display

hot selling high small handheld handheld patient monitor

Quick Detail:

*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple, low power consumption
*SpO2 value display
*Pulse rate value display, bar graph display

Description:

*Pulse waveform display
*The display mode can be changed
*Changeable light-time
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*With clock function
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
*Connected with an external oximeter probe.
*Trend Graph/Table: Resolution from 1s, 5s, 10s,30s,1min,and so on. Storage of latest 96 hours trend data.
*Alarm:Adjustable High and Low limits. Three level audible and visual alarm , latest 50 alarm information and  waveform displays 8 seconds which 4 seconds are before a certain time when the alarm is turned on and 4 seconds are after appointed time when the alarm is turned on.
*Upload data: Data stored in SD card can be uploaded to computer and  analyzed by SpO2 software.

*Small in volume,light in weight and convenient in carrying
*Operation of the product is simple, low power consumption
*SpO2 value display
*Pulse rate value display, bar graph display
*Pulse waveform display
*The display mode can be changed
*Changeable light-time
*A pulse rate sound indication
*With measured data overruns limits and low-voltage alarm function, the upper/down alarm range is adjustable
*With clock function
*Battery capacity indication
*Low-voltage indication: low-voltage indicator appears before working abnormally which is due to low-voltage, and with alarm function
*Connected with an external oximeter probe.
*Trend Graph/Table: Resolution from 1s, 5s, 10s,30s,1min,and so on. Storage of latest 96 hours trend data.
*Alarm:Adjustable High and Low limits. Three level audible and visual alarm , latest 50 alarm information and  waveform displays 8 seconds which 4 seconds are before a certain time when the alarm is turned on and 4 seconds are after appointed time when the alarm is turned on.
*Upload data: Data stored in SD card can be uploaded to computer and  analyzed by SpO2 software.

Applications:

can be used in measuring the pulse oxygen saturation and pulse rate through finger.The product is suitable for being used in family, hospital, oxygen bar, community healthcare, physical care in sports (It can be used before or after doing sports, and it is not recommended to use the device during the process of having sport) and etc.

Specifications:

Display Mode: 3.5\" Color TFT display
Screen Resolution: 320*240
SpO2 Measuring Range: 0%～100%, (the resolution is 1%).
Accuracy: 70%～100%: 2% ,Below 70% unspecified.
PR Measuring Range: 30bpm～250bpm, (the resolution is 1bpm)
Accuracy: 2bpm or 2% (select larger)
Measurement Performance in Weak Filling Condition:
SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is 4%, pulse rate error is 2 bpm or 2% (select larger).
Resistance to Surrounding Light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than 1%.
Power Consumption: less than 300mA
Voltage: DC 5.0V
Power Supply: Built-in recharge Li-Polymer
Battery Working Hour: 7 hours
Safety Type: Interior Battery, BF Type
