3000mm/min Auto Welding H-Beam Production Line MZ-1000 Weld Machine

Delivery Time:30 work days
Certification:Certification of original


3000mm/min Auto Welding H-Beam Production Line MZ-1000 Weld Machine


Kindly Noted:


Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.Customer should provided us technical parameters,such as the web height,web thickness,flange height and thickness.We could according to customer’s requirement,widen the track gauge4.With 2 sets of MZ-1000 SAW welding machine



Description:

  MZ-1000 Bx2 H-beam steel Gantry Welding Machine is specially designed for the welding of H-beam . It realized the combination of welding control and trolley control and can be operated easily .It use ULS motor drive for the drive of portal .Driven by alternating current converter ; stable speed ; digital display of the linearity speed , good reliability ,there is no three- axle mechanical tracking ar guiding mechanism ; floating type tracing to guarantee that the welding torch targeting at the welding seam accurately .The power line for the submerged arc welding can move on the portal flame to shorten the length of the control cable and the welding cable as far as possible to quicken the response , reduce the pressure and stabilizing the welding current.


Applications:

MZ-1000BX2 H-beam Gantry welding machine is used for produce H-beam,fillet welding in the flat position.


Specifications:


Height of the Flange	200-800mm
Thickness of Flange	6-40mm
Height of the Web	200-1500mm
Thickness of the Web	6-32mm
Length of the Usable Work Piece	4000-15000mm
Welding Speed	240-1000mm/min
Speed of Back Stepke	3000mm/min
To-and-fro Stoke of the Welding Arrn	800mm
Welding Position	Fillet Welding in the Flat Position
Size of the Usable Welding Wire	3.2-5mm
Driver	Bilateral

Draft drawing:


Competitive Advantage:

1.Adopt PLC control.
2.Driving system is bilateral.
3.Using famous electric ,such as Siemens or Schneider
4.Equip 2 sets of MZ-1000 SAW welding machine.

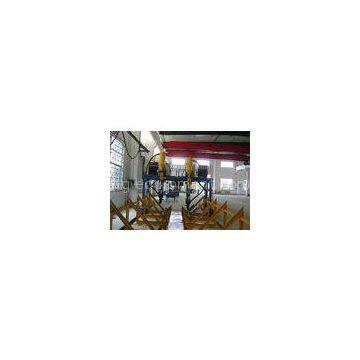

Detailed pictures for reference:



Installation and commissioning:

If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
