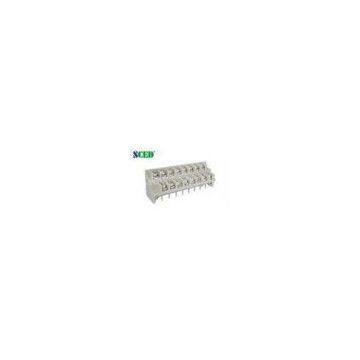

Double Levels Grey 7.62mm Barrier Terminal Block Connector 42P - 202P 300V

Name: Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V
Brand: SCED
SKU: 148959042
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

SCED

Place of Origin:

China

Model Number:

TB762-04-GY

Sced Electornics Company

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Brand Name SCED

Place of Origin China

Model Number TB762-04-GY

Delivery Time:7-20 working days
Certification:UL, CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,

Military, Elevator, etc..

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double levels; □Triple levels

Standard color: Grey. Other colors also available, please refer to below How to Order and select

the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 15 300 / 10
Wire Range AWG	14-22 14-22
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	250 / 24 320 / 24 400 / 24
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm2	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3/ 5-7
