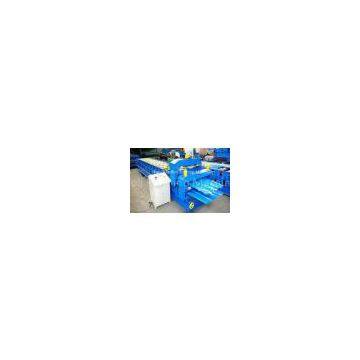

20m/min PLC Control Cold Roll Forming Equipment For Color Steel Plate
- T/T L/C D/P D/A
- 7 days
You May Like
-
Roof / Wall Sheet Metal Roll Forming Machines 380V 50Hz 3 Phases
-
1220mm Automatic Double Layer Roll Forming Machine Cold Roll Forming Equipment
-
45# Steel Wall Panel Double Layer Roll Forming Machine With 10 / 11 Rows
-
Cr12 Plate Double Layer Roll Forming Machine For Roof Panel 0.3mm - 0.6mm 20m/min
-
1250mm Tile and Roof Double Layer Roll Forming Machines
-
Color Steel Plate Roof Double Layer Roll Forming Machine With PLC Control
Product Details
| Brand Name | HC | Place of Origin | China | |
| Model Number | HC25/38 |
Product Description
Certification:ISO
High Quality Wall And Roof Roll Forming Machine
Quick Detail:
1. Suitable to process: Color steel plate
2. Width of the plate: 1000mm
3. Rollers: 11/14 rows
4. Dimensions: 9.1*1.45*1.91m
5. Power: 4+4kw
6. Rolling material: high grade 45# steel(plated chrome on surface)
7. Thickness of the plate:0.3-0.6mm
8. Voltage: 380V 50Hz 3phases
9. Material of the cutting plate: Cr12
10. Hydraulic: 40#
11. Processing precision: Within 1.00mm
12. Control system: PLC control
Description:
Double layer glazed tile roll forming machine Main parameter
|
No. |
Main parameter of Double layer glazed tile roll forming machine |
|
|
1 |
Suitable to process |
Color steel plate |
|
2 |
Width of the plate |
1000mm |
|
3 |
Rollers |
upper level :11rows Down level :14 rows |
|
4 |
Dimensions |
9100*1550*1910mm |
|
5 |
Power |
4+4kw |
|
6 |
Rolling material |
high grade 45# steel(plated chrome on surface) |
|
6 |
Thickness of the plate |
0.3-0.6mm |
|
7 |
Productivity |
upper level :4m/min Down level:20m/min |
|
8 |
Diameter of the roller |
Φ70mm |
|
9 |
Voltage |
380V 50Hz 3phases |
|
10 |
Material of the cutting plate |
Cr12 |
|
11 |
Hydraulic |
40# |
|
12 |
Processing precision |
Within 1.00mm |
|
13 |
Control system |
PLC control |
Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- press form-cutting
Application
This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site
Competitive Advantage
1. Pretty appearance
2. Various special model
3. mature foreign trade team
4. professional designing team
5. Lifetime maintenance
