Custom Stainless Steel Oven Heating Elements , Screw In Heating Element

Delivery Time:About 15days
Certification:CQC CE

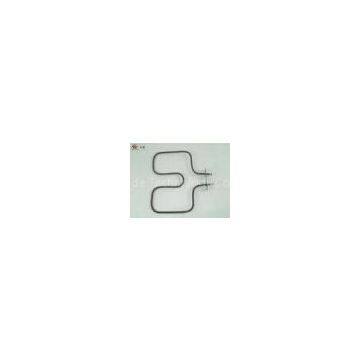

Stainless Steel Oven Heating Elements , Screw In Heating Element

Quick Detail:

Material of pipe:stainless steel 304/316/310,Incoloy Flange:stainless steel/brass Diameter:8mm/10mm/12mm and so on Voltage:120V/220V/230V/240V Power:2.5KW/3.2KW/4KW and so on Surface: Polish/Electrolysis Certificate:CQC/CE

Description:

SS304 Tubular heating element for oven are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.

Even though tubular heaters are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Screw in tubular heaters are standardised for use in liquids like water.

SS304 Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available .

Applications:

1.  Electrical Water Heater

2. Solar Heating

3. Boilers

4. Washing machines

5. Heat Pumps

6. Dish Washers

7. Towel Heaters

8. Fryers

9. Industrial Baths

10.  Desinfectors

Specifications:

volume density	6~6.5g/cm³	bend strength	5.5~25kg/cm²
vickers-hardness	(hv)570kg/mm²	porosity rate	7.4%
water absortion	1.2%	hot extensiblity	4%

Furnace Temp(°c)	1200	1300	1400	1550	1600
Surface looad of hot zone(W/cm²)	<5	<6	<8	<10	<12

Competitive Advantage:

Factory Broad veriety of sizes for different applications Energy efficient The best price and quality Compact Designed and built for safety Easy to install and maintain Sell the product to all over the world

The drawing of SS304 Tubular heating element for oven:

 The package of SS304 Tubular heating element for oven:
