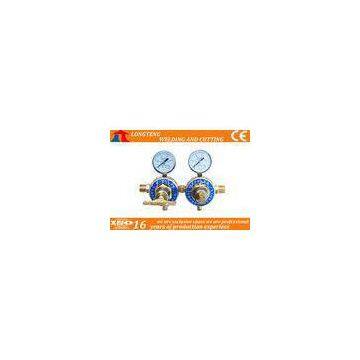

Oxygen Double Stage Gas Regulator For Gas Supply Control Of Cutting Machine

FOB Price

Negotiable / Box

1 Box(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Longteng		Place of Origin	China
Model Number	LT-YQJ-11-2

Product Description

Delivery Time:7-15 days after the payment
Certification:CE,ISO

Oxygen Two Stage Gas Regulator For Gas Supply Control Of Cutting Machine

1) Quick Detail:

1. Two stage high pressure gas regulator

2. Use for gas supply control of CNC cutting machine

3. Material:brass

2) Description:

1> Structural Features

1. Double stage pressure reducing structure

2. Use the high quality forging brass for upper cover and its body structure

3. With the sintered bronze filter screen at the inlet gas pipe.

4. For the lining in side of the upper cover, use the high quality stainless steel to make much smoother for pressure reducing.

3) Applications:

Gas regulator is a adjusted device which can reduce the high pressure gas to low pressure gas, can maintain the pressure.

1. A big-flow gas distributing system.

2. Designed for the pressure regulating system of the cylinder centralized gas supply device.

3. A high- precision pressure regulating device.

4. The input pressure is no more than 15Mpa and the output pressure is between 0.01 and 1.6Mpa.

5. When both the output pressure and the output flow change, it can stabilize the output pressure and work continuously for a long time.

6. It uses brass strainer inside, which can effectively filter gas impurities. The strainer is easy to be replaced.

4) Specifications:

Model Number	LT-YQJ-11-2
Brand Name	Longteng,OEM
Place of Origin	Wuxi, China (Mainland)
Certification	CE,ISO
Loading Port	FOB Shanghai
Type	Double stage
Outlet pressure	0.01-1.6(Mpa)
Input Pressure	0-15(Mpa)
Rated Flow	100(m3/h)
Fluid available	Oxygen
Material	Brass
Using temperature range	-20-50(℃)

Model No.	Gas service	Inlet connection	Outlet connection	Inlet pressure (Mpa)	Outlet pressure(Mpa)	Outlet flowmeter(M3/h)
YQJ-11	oxygen/carbon dioxde	G3/4	G3/4	15	0.01~1.6	100

5) Competitive Advantage:

1. Professional manufacturer for CNC cutting machine accessories

2. More than 18 years experience

3. Factory direct price and on time delivery

4. Secure ordering and worldwide delivery

5. Sample available

6. Small quantity acceptable

7. OEM workable
