Manual rubber tube locking machine/Manual hose swager

FOB Price

US$ 2000 - 2000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CXT		Place of Origin	China
Model Number	CXT68-DX68

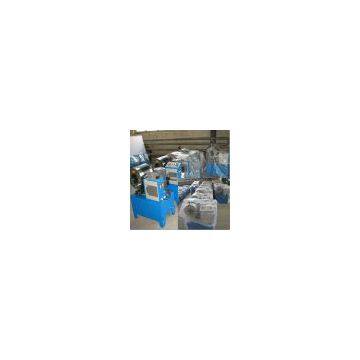

Manual rubber tube locking machine/Manual hose swager

DATA

1.Crimping Range (inner diameter of hose): 1/8"-2" 4SP

2.Ruler precision: 0.01mm

3.The locking & pressing force: 500T

4.Rated pressure: 30Mpa

5.Oil pump displacement: 5ml/rad (380V) or 2.5ml/rad (220V)

6.Power: 3Kw (380V) or 2.2Kw (220V)

7.Dimension: (L*W*H): 690*430*950mm

8.Weight: 200kg

Technical data

Item	Hydraulic hose crimper machine
Crimper range	1/8"-2" 4SP
Standard voltage&motor	380V/4KW
Opening without dies	118mm
Opening	-+38mm
Swaging force	500T
Optional voltage & motor	220V/2.2KW
No.of standard die set	10 sets
Systematic pressure	30MPa
Weight	200KG
Dimension	690(L)465(W)790(H)
