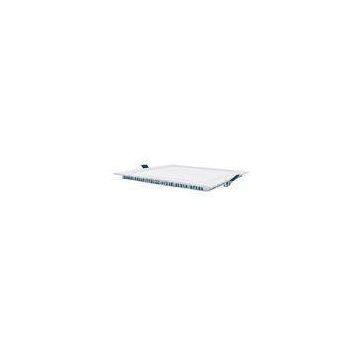

18W 3200K Warm White Led Square Panel Light Lamp 1600lm , 90 SMD 2835 Led

Delivery Time:10 – 30 days ( Depends On Quantity Of Orders )
Certification:CE & ROHS

18W 3200K Warm White Led Square Panel Light Lamp 1600lm , 90 SMD 2835 Led

Product Name	18W LED Square Panel Light	Input Voltage (Driver):	90-265VAC /50-60HZ
Application:	Commercial & home lighting , corridor , restaurants , Kitchen , bathroom and Cabinet	Advantage:	easy to install , long lifespan , maintain costs low , energy Saving , cut down electricity expenses , 90% less than usual incandescent lighting
Fewer electrical losses	All other types of lighting (except incandescent) require ballasts, additional electronic and/or electromagnetic components, in which some power is consumed.	RoHS compliance :	LEDs don\'t contain mercury or lead, and don\'t release poisonous gases if damaged

Quick Details:

Dimensions: L225 * W225 * H13 mm Ultra thin 13mm thickness only Power: 18 watt Long lifespan : 50,000 Hrs Warranty :  3 years Light source: SMD 2835 LED  CCT: 2800 - 6500K

General Information of 18W 1600lm 3200K Warm White 90 SMD 2835 LED Square Panel Light Lamp

Traditional grille is used ordinary fluorescent tube as lighting source, high power consumption, short service life, maintenance costs are high; the LED flat panel light, energy saving and environmental protection, which is designed to replace the traditional grille lamp.

The lamp body of the LED Flat Panel Light is made of high quality aluminum alloy materials . With the big area of the aluminum frame structure and its ultra fast cooling rate , the heat dissipation performance of the lamp is greatly improved . The adopted high efficient SMD LED light source saves energy significantly by its low light decline rate and long service life . The driver part adopts the constant current drive power supply with high accuracy , high efficiency, stable performance and no stroboscopic.

Product Specifications :

Model	R2U - 12017
Description	8 \'  Square 18 W LED Flat Panel Light
Dimension	L225 * W225 * H13 mm
Lighti source	SMD LED 2835 chip
LED QTY	90 pieces
Power Consumption	18 Watt
Input voltage (Driver)	90V-265V AC /50-60HZ
LED Driver Efficiency	≥85%
PF	≥0.95
Operating temperature	-40~+60℃
CCT	2800k-6500K
Luminous Efficiency	90Lm/W
Luminous Flux	2800k-6500lm (±3%)
CRI	Ra ≥ 80
Bean-angle	120 °
Protection grade	IP44
Temperature rising	< 45 ℃

Features and Advantages of 18W 1600lm 3200K Warm White 90 SMD 2835 LED Square Panel Light Lamp :

◇Utilizing imported super bright SMD LED , high luminous intensity and efficiency ;

◇Energy saving , saving 90% of energy than incandescent bulbs ;

◇Encapsulated by the special craft make it durable , good heat dissipation by ravines surface structure, service life can reach 50000 hours ;

◇Green environmental protection materials . No ultraviolet , infrared , thermal radiation and mercury pollution ;
